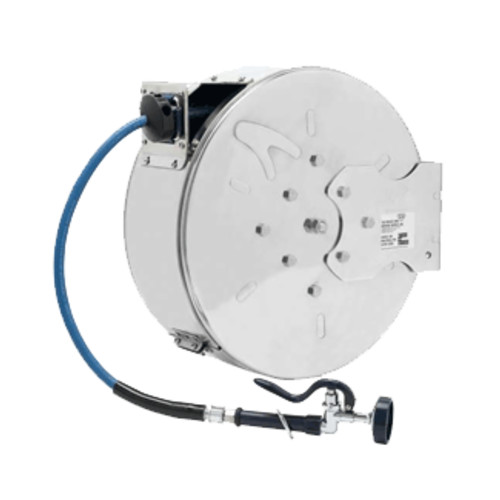

Hose Reel Enclosed Stainless Steel 50 Hose 3 8 ID w S
T&S Brass
B-7142-C01Enclosed stainless steel hose reel, high flow spray valve with swivel, 3/8" x 50' heavy-duty non-marking hose, ratcheting system, multi-fit bracket, adjustable hose bumper and 3/8" NPT female inlet.
- Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
- Temperature: 40°F - 140°F (4.44°C - 60°C)
- 3.20 GPM @ 60 psi (12.11 L/min @ 4.14 bar)
NOTE: If mixing valve is used, check valves should be installed to prevent crossflow of water
42733398
Hose Reel Enclosed Stainless Steel 50 Hose 3 8 ID w S
$
2720.73
/ each
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits
- Enclosed stainless steel hose reel
- Blue high flow spray valve w/ swivel
- 3/8" x 50' heavy-duty non-marking hose rated to 300 PSI
- Ratcheting system holds the length of hose until a slight tug to retract automatically
- 3/8" NPT female inlet
- Adjustable hose bumper
- Multi-fit bracket for wall, ceiling or under counter mounting
- Material: Stainless steel open reel & wall bracket and polished chrome plated brass spray valve
| Variations: Hose Reel w/ Spray Outlet || B-7142-50ft Hose x 3/8" I.D. | |||||||
 |
 |
 |
 |
 |
 |
 |
 |
| B-7142-C01 | B-7142-C01M | B-7142-C02 | B-7142-C05 | --- | B-7142-C08H | B-7142-C08M | B-7142-C10 |
| Hi-Flo Blue Spray Valve (4Gpm) | Gray Spray Valve (1.42Gpm) |
Rear Trigger Water Gun | Front Trigger Water Gun | Aluminum Rear Trigger Water Gun |
JeTSpray Hi-Flo Spray Valve |
JeTSpray Valve (1.48Gpm) |
Extended Spray Wand |
| Spray Outlet SKU | |||||||
| EB-0107 | B-0107 | MV-2516-24 | MV-2522-24 | MV-3516-24 | B-0108-H | B-0108 | EB-2322 |
| LINK » | LINK » | LINK » | LINK » | LINK » | LINK » | LINK » | LINK » |

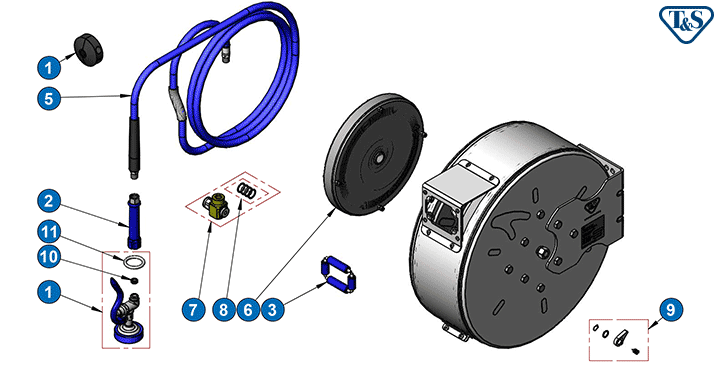

| HOSE REELS B-7142-C01 | ||
01 |
Hi-Flo Spray Valve | SKU: EB-0107 |
02 |
Blue Grip Handle w/ Washer | SKU: 012504-40 |
03 |
Roller Replacement Kit | SKU: 014937-45 |
04 |
Hose Stop Repair Kit | SKU: 014949-45 |
05 |
3/8" x 50ft Hose Replacement Kit | SKU: 014942-45 |
06 |
Large Stainless Steel Spring | SKU: 014935-45 |
| B-7142-C01 (CONT'D) | ||
07 |
3/8" Swivel Repair Kit | SKU: 014946-45 |
08 |
O-ring Replacement Kit | SKU: 014948-45 |
09 |
Ratchet Repair Kit | SKU: 014940-45 |
10 |
#27 Washer | SKU: 010476-45 |
11 |
Spray Valve Hold Down Ring | SKU: 000907-45 |
Dynamic Features and Benefits
| Feature | Function | Benefit |

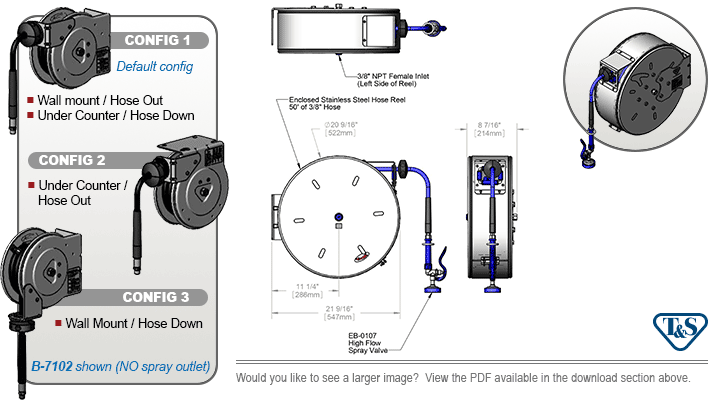

| Adjustable Arm | Hose reel arm is adjustable to two different positions. | Gives user greater flexibility for their particular application. Adjustability allows arm to be either in wall mount or under counter mount position. |
| Anti-lockout Ratchet Design | When hose is fully extended, ratchet pawl is inbetween two sets of locking gears. | Allows hose to retract freely. Eliminates need to manually rewind the hose. |
| Brass Swivel on Stainless Shaft | Eliminates a condition known as "galling" where excessive friction between like metals results in localized welding with subsequent splitting of one or both of two mating parts. | Reduces risk of rusting, leaking and potentially an unusable hose reel. |
| Hose | Hose has a nitrile tube and oil-resistant synthetic rubber jacket with a synthetic yarn braid for reinforcement. Rated up to 200 degrees F and 300 psi. | Hose has better oil and grease resistant properties than PVC or EPDM rubber hose. |
| Impact-resistant Ratchet Assembly | Ratchet plate is 1/4" thick stainless steel with six catch points. Ratchet pawl is made from corrosion resistant steel. | Longer service life as compared to others where the parts are made from plastic and tend to break under stress. |
| Mounting Base | Contains multiple holes and slots. | Makes reel easier to retrofit to existing mounting patterns. Eliminates need to drill additional holes to a specific mounting pattern. |
| Protected Hose Outlet | Hose outlet contains a full guide bushing that rims the opening. | Allows the hose to move freely across guide bushing instead of against metal. Hose doesn't bind in corners as it can in outlets with only four rollers, resulting in longer hose jacket life. |
