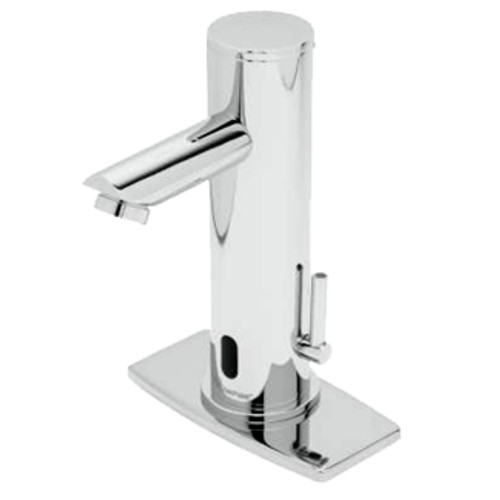

Chekpoint Electronic Faucet Single Hole Deck Mount Deck Pl
T&S Brass

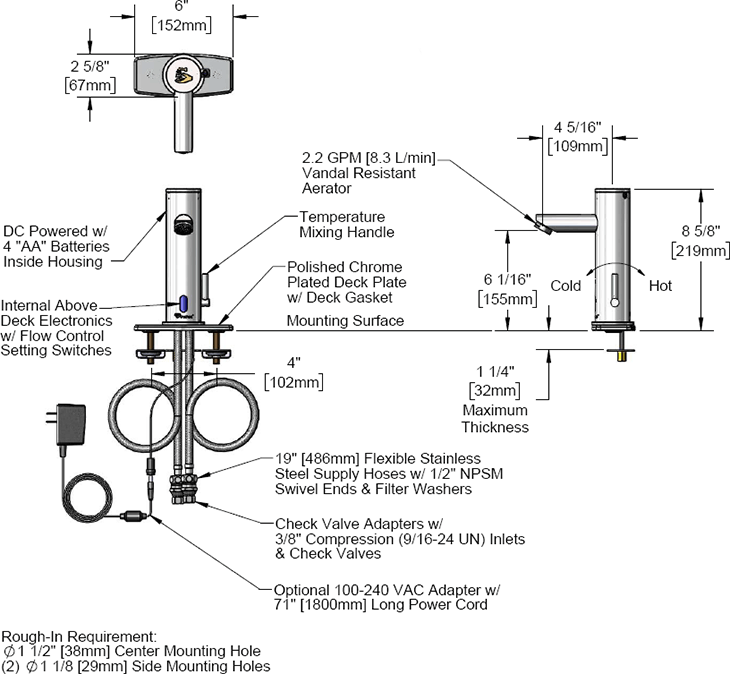

EC-3122-4DPSingle hole deck mount electronic sensor faucet with polished chrome plated brass body and integral spout, 4" deck plate, 2.2 GPM vandal resistant aerator, above deck electronic AC/DC control module with internal flow control setting switches, above deck temperature mixing handle, 19" flexible stainless steel supply hoses and check valve adapters with 3/8" compression connections. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372 and UL 1951. Meets ADA ANSI/ICC A117.1 requirements.
- Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
- Temperature: 40°F - 140°F (4.44°C - 60°C)
- Water Consumption: @ 10 sec = .37 gal
- 2.20 GPM @ 60 psi (8.33 L/min @ 4.14 bar)
42735059
Chekpoint Electronic Faucet Single Hole Deck Mount Deck Pl
$
583.2
/ each
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Chekpoint Faucets Standard Features:
- Hands-free washing greatly reduces risk of contamination
- Sensor-operated faucets conserve water
- Water-resistant circuit control module
- Each model comes with the convenience of electric plug-in (AC) and battery (DC) power options
- ADA-compliant
- Adjustable temperature control mixing valve
- Proven electronic technology
- Adjustable automatic time-out feature
- Adjustable water shut-off delay
- Chrome plated brass
- Troubleshooting LED indicator lights
- Scratch-resistant sensor lens
- Filtered solenoid valve with serviceable strainer filter
- Modular quick-release sensor connections
- Low battery indicator light
- Pre-assembled with appropriate mounting hardware included
- Vandal-resistant aerators (2.2 GPM)
- Check valves for cross-flow prevention in all models
- Requires no sealants for easy installation
