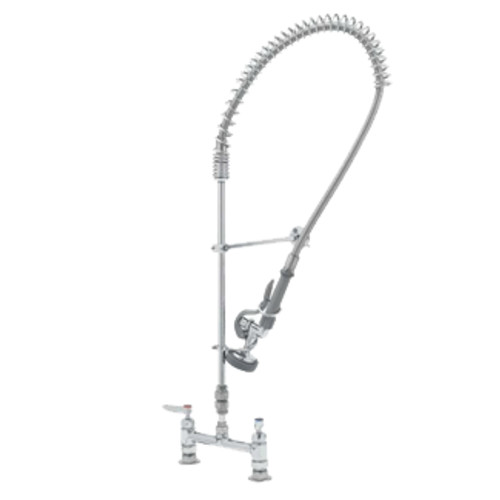

Pre-Rinse Spring Action Deck Mount Vacuum Breaker Supply
T&S Brass
B-2277-CR8" deck mount mixing faucet with polished chrome plated brass body, continuous pressure vacuum breaker, 18" riser, 44" flexible stainless steel hose with heat resistant handle, 1.15 GPM spray valve, ceramic cartridges with check valves, lever handles, 1/2" NPT female inlets, 1/2" NPT supply nipple kit, 12" adjustable wall bracket, spray valve holder and overhead spring. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372 and CSA B64.8. 2019 DOE PRSV - Class II compliant.
- Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
- Temperature: 40 F - 140 F (4.44°C - 60°C)
- 1.15 GPM @ 60 psi (4.35 L/min @ 4.14 bar)
42732731
Pre-Rinse Spring Action Deck Mount Vacuum Breaker Supply
$
800.55
/ each
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits
- 8" deck mount polished chrome plated brass body
- EasyInstall continuous pressure vacuum breaker
- 18" riser
- 44" flexible stainless steel hose w/ heat resistant gray handle and hold down ring
- 1.15 GPM spray valve
- Quarter-turn Cerama cartridges w/ check valves to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2" NPT female inlets with 2" adjustable flanges
- Adjustable centers from 7-3/4" to 8-1/4"
- 1/2" NPT supply nipple kit
- 12" adjustable wall bracket
- Material: Polished chrome plated brass body, riser & spray valve body, chrome plated vacuum breaker, stainless steel hose, and chrome plated metal handles
Attributes
- Body-Mount: Deck
- Body: 8" Centers (203 mm)
- Inlet:
- 1/2" NPT Female (13 mm)
- Adjustable Centers
- Cartridge-Spindle: Ceramic
- Handle: Lever
- Spray Valve: B-0107 (1.15 GPM) (4.35 L/min)
- Feature:
- 12" Wall Bracket (305 mm)
- Continuous Pressure VB
