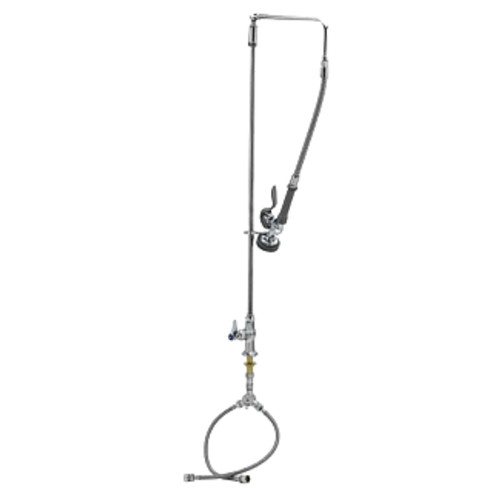

Pre-Rinse Overhead Swivel Arm Single Hole Base Flex Hoses
T&S Brass
B-0171Single hole single temperature deck mount faucet with polished chrome plated brass body, 32" riser, overhead swivel arm, 20" flexible stainless steel hose with heat resistant handle, 1.15 GPM spray valve, temperature control mixing valve with integral check valves, compression cartridge with spring check, lever handle, spray valve holder and 18" flexible stainless steel supply hoses w/ 1/2" NPSM / 5/8" O.D. compression connections. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. 2019 DOE PRSV - Class II compliant.
- Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
- Temperature: 40°F - 140°F (4.44°C - 60°C)
- 1.15 GPM @ 60 psi (4.35 L/min @ 4.14 bar)
Download: Specs | Installation
42731179
Pre-Rinse Overhead Swivel Arm Single Hole Base Flex Hoses
$
656.82
/ each
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits
- Single hole single temperature deck mount mixing faucet w/ polished chrome plated brass body
- EasyInstall 32" riser
- 12" overhead swivel arm
- 20" flexible stainless steel hose w/ heat resistant gray handle and hold down ring
- 1.15 GPM spray valve
- Temperature control mixing valve w/ check valves
- Quarter-turn Eterna compression cartridge w/ spring check
- Lever handle w/ color coded index
- 18" flexible stainless steel supply hoses w/ 1/2" NPSM / 5/8" O.D. compression connections
- Material: Polished chrome plated brass body, riser, swivel arm & spray valve body, stainless steel hose, and chrome plated metal handle
Attributes
- Body-Mount: Deck
- Body:
- Single Temp
- Single Hole
- Cartridge-Spindle: 1/4 Turn Compression
- Handle: Lever
- Spray Valve: B-0107 (1.15 GPM) (4.35 L/min)
