Pre-Rinse 8 Wall Mount Balancer Arm 68 Flex Hose B-010
T&S Brass

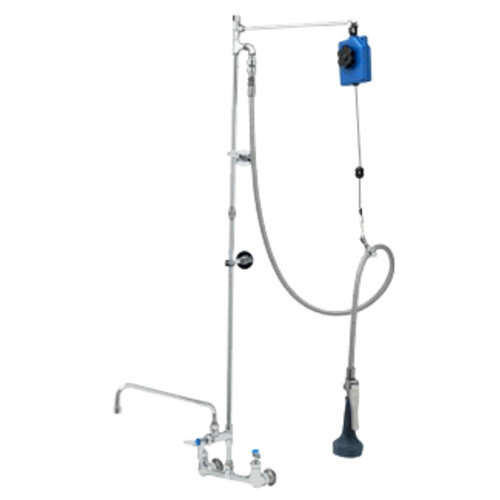

B-0140-088" wall mount mixing faucet with polished chrome plated brass body, add-on faucet with ceramic cartridge and lever handle, 12" swing nozzle with stream regulator outlet, 24" and 18" risers, 3/8" NPT pipe coupling, swivel elbow, 68" flexible stainless steel hose, 1.07 GPM spray valve with insulated handle grip, ceramic cartridges with check valves, lever handles, overhead swivel extension arm with balancer, 6" adjustable wall brackets, and 1/2" NPT female inlets. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. EPAct 2005 compliant.
- Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
- Temperature: 40°F - 140°F (4.44°C - 60°C)
Download: Specs | Installation
42731126
Pre-Rinse 8 Wall Mount Balancer Arm 68 Flex Hose B-010
$
1592.65
/ each
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits
- 8" wall mount mixing faucet with polished chrome plated brass body
- EasyInstall add-on faucet w/ polished chome plated brass body
- 12" swing nozzle w/ stream regulator outlet, Series 1
- 24" and 18" rigid risers w/ pipe coupling
- Swivel elbow assembly
- 68" flexible stainless steel hose
- 1.07 GPM JeTSpray valve w/ insulated grip handle, stainless steel trigger and trigger lock
- Quarter-turn Cerama cartridges w/ check valves to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2" NPT female eccentric inlets w/ 2" flanges
- Adjustable centers from 7 3/4" to 8 1/4"
- Overhead swivel extension arm with adjustable tension balancer
- 6" adjustable wall brackets
- Material: Polished chrome plated brass body, riser, tubular nozzle, swivel arm & spray valve body, stainless steel hose, and chrome plated metal handles
Attributes
- Body-Mount: Wall
- Body: 8" Centers (203 mm)
- Inlet:
- 1/2" NPT Female (13 mm)
- Adjustable Centers
- Cartridge-Spindle: Ceramic
- Handle: Lever
- Nozzle:
- Add-On Nozzle
- Swivel
- 12" (305 mm)
- Nozzle
- Spray Valve: B-0108 (1.07 GPM) (4.05 L/min)
- Feature:
- Continuous Pressure VB
- 6" Wall Bracket (152 mm)
