    /Files/Images/Products/42732601.jpg

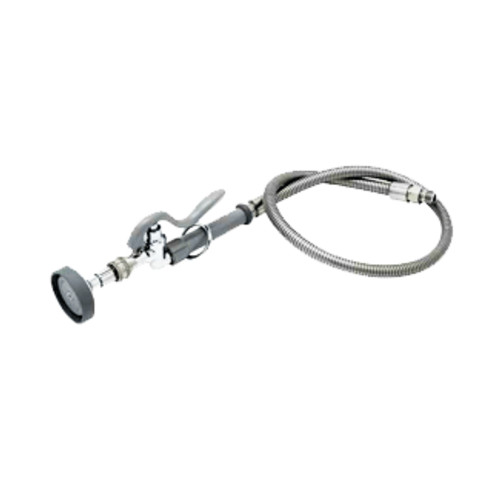

    Spray Assembly 3 Stainless Steel Hose w Quick Disconnect

    T&S Brass

    B-1410

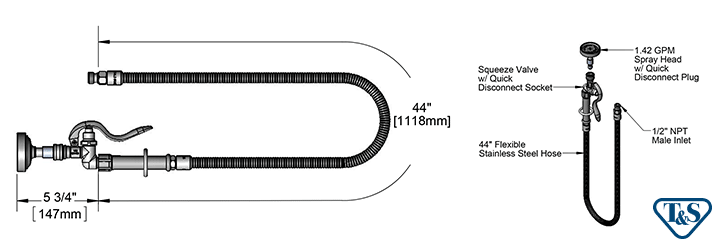

    Automatic shut-off valve with polished chrome plated brass body and quick disconnect socket, 1.15 GPM spray head with quick disconnect plug, 44" flexible stainless steel hose with heat resistant handle and 1/2" NPT male inlet. Certified to ASME A112.18.1/CSA B125.1, NSF 61- Section 9 and NSF 372. 2019 DOE PRSV - Class II compliant.

    • Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
    • Temperature: 40°F - 140°F (4.44°C - 60°C)
    • 1.15 GPM @ 60 psi (4.35 L/min @ 4.14 bar)

    Downloads: Specs | Install | Submittal

    $ 459.42
    42732601

    Secure transaction
    Material Safety Data Sheets (MSDS)
    Quote Checkout
    42732601

    Spray Assembly 3 Stainless Steel Hose w Quick Disconnect

    $ 459.42 / each
    Item Added to Cart
    SKU
    Description
    Quantity
    Show Cart

    More Info

    Features & Benefits

    • Automatic shut-off valve
    • Spray valve w/ quick disconnect socket
    • 1.15 GPM spray head w/ quick disconnect plug
    • 44" flexible stainless steel hose w/ heat resistant gray handle and hold down ring
    • 1/2" NPT male inlet fitting
    • Material: Polished chrome plated brass body and stainless steel hose

    Product Compliance

    • NSF/ANSI 61
    • ASME A112.18.1 / CSA B125.1
    • EPAct2005 (Public Law 109-58)
    • Low Lead Content (0.25% Max)
    • City of Los Angeles
    • Commonwealth of Massachusetts
    • BAA/ARRA
    • ASTM F2324
    • NSF/ANSI 372 (Lead Content)
    • California Energy Commission CEC-400 (Plumbing)

    T&S Brass (B-1410) Spray Assembly, 3' Stainless Steel Hose w/ Quick Disconnect Spray Valve additional product graphic
    T&S Brass (B-1410) Spray Assembly, 3' Stainless Steel Hose w/ Quick Disconnect Spray Valve additional product graphic

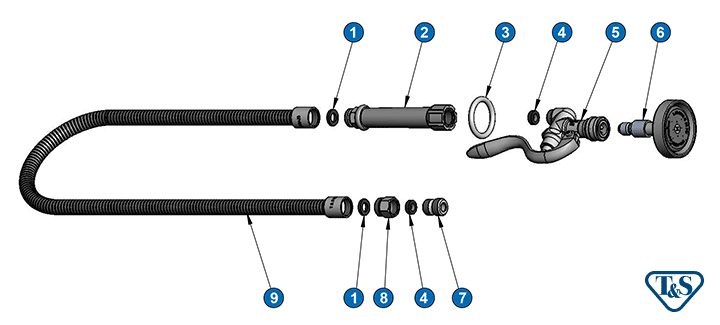

    SPRAY ASSEMBLY B-1410

    01

    		 Barrel Hose Washer SKU: 001014-45

    02

    		 Grip Handle SKU: 002987-40

    03

    		 Spray Valve Hold Down Ring SKU: 000907-45

    04

    		 #27 Washer SKU: 010476-45

    05

    		 Squeeze Valve w/
    Quick-disconnect Socket    		 SKU: B-1420
    B-1410 (CONT'D)

    06

    		 Spray Face w/
    Quick-disconnect Plug    		 SKU: B-1421

    07

    		 1/2" NPT Male Adapter SKU: 055A

    08

    		 7/8-20 Male x 3/4-14 Female Nut SKU: 000729-40

    09

    		 44" Flexible Stainless Steel Hose (w/o handle) SKU: B-0044-H2A
