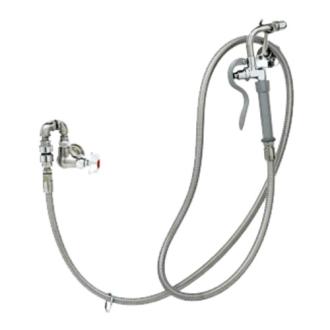

Single Temp Wall Mount Unit w Spray Nozzle Aerator 96 H
T&S Brass
B-0169-102C-96HWall mount mixing faucet with polished chrome plated brass body, vacuum breaker, 96" flexible stainless steel hose with heat resistant handle, 90 angled spray nozzle with 2.2 GPM aerator, compression cartridge with spring check, lever handle, 1/2" NPT female inlet and hanger hook. Certified to ASME A112.18.1/CSA B125.1, NSF 61 Section 9, NSF 372 and CSA B64.8.
- Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
- Temperature: 40°F - 140°F (4.44°C - 60°C)
- 2.20 GPM @ 60 psi (8.33 L/min @ 4.14 bar)
Downloads: Specification | Installation
42731177
Single Temp Wall Mount Unit w Spray Nozzle Aerator 96 H
$
758.73
/ each
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits
- Wall mount mixing faucet with polished chrome plated brass body
- Vacuum breaker
- 96" flexible stainless steel hose w/ heat resistant gray handle and hold down ring
- 90 angled spray nozzle
- 2.2 GPM aerator, Series 1 ( B-0199-01)
- Quarter-turn Eterna compression cartridge w/ spring check
- 4-arm handle with color coded index
- 1/2" NPT female eccentric inlet with 2" flange
- Material: Polished chrome plated brass body, inlet, spray valve body, stainless steel hose and chrome plated metal handle
Attributes
- Body-Mount: Wall
- Body:
- Single Temp
- Single Hole
- Cartridge-Spindle: 1/4 Turn Compression
- Handle: 4 Arm
- Nozzle Outlet Flow Rate: 2.20 GPM (8.33 L/min)
- Nozzle Outlet Type: Aerator
- Feature:
- Angled Sprayer
- Continuous Pressure VB
| SPRAY ASSEMBLY B-0169-102C-96H | ||
01 |
90-degree Spray Nozzle w/ 2.2Gpm Aerator |
SKU: 009937-40 |
02 |
Spray Valve Hold-down Ring | SKU: 000907-45 |
03 |
#27 Washer | SKU: 010476-45 |
04 |
2.2Gpm Aerator 55/64-27 UN Female |
SKU: B-0199-01 |
05 |
Adapter 55/64-27 M x 5/8-27 F |
SKU: 000554-25 |
06 |
Adapter 3/8" NPT x 3/4-14 UNS |
SKU: 053A |
07 |
3/8" NPT Vacuum Breaker | SKU: B-0970-FE |
08 |
3/8" Close Nipple | SKU: 002535-25 |
09 |
3/8" NPT Elbow | SKU: 001355-40 |
10 |
Eterna Cartridge (right-to-close) |
SKU: 005960-40 |
11 |
4-arm Handle | SKU: 002521-45 |
12 |
Hot Water Index (red) | SKU: 001661-45 |
13 |
Lever Handle Screw | SKU: 000922-45 |
14 |
96" Flex Stainless Steel Hose | SKU: B-0096-H |
15 |
Wall Hook w/ Mounting Software |
SKU: B-0166 |
