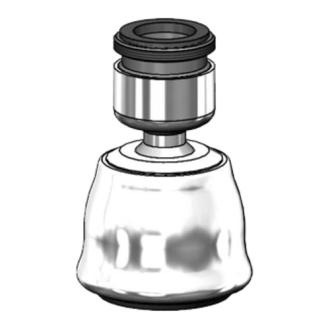

Swivel Aerator Dual Spray Pattern - Laminar Or Spray 2.2 G
T&S Brass
B-0199-222.2 GPM swivel outlet device with push-pull operation for stream or spray pattern, polished chrome plated body, 55/64-27 UN female inlet and 15/16-27 UN male adapter. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372.
- Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
- Temperature: 40°F - 140°F (4.44°C - 60°C)
- 2.20 GPM @ 60 psi (8.33 L/min @ 4.14 bar)

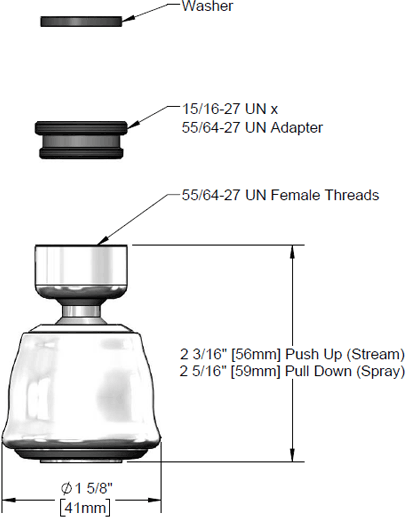

Downloads: Specifications
Swivel Aerator Dual Spray Pattern - Laminar Or Spray 2.2 G
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits
- 2.2 GPM swivel outlet device, Series 1
- Push-pull operation for stream or spray pattern
- 55/64-27 UN female inlet
- 15/16-27 UN male adapter included
- Fits all T&S swing nozzles
- Material: Polished chrome plated body
Aerator Outlets Explained
Aerator OutletsFaucet aerators introduce air into the water stream to produce a larger white stream soft to the touch and non-splashing. |
Laminar Flow OutletsLaminar flow (laminar stream) straighteners produce a non-aerated water stream. Ideal for high flow applications or healthcare facilities (no mix water/air). Laminar spout-end devices deliver a crystal clear and nonsplashing stream. |
Non-aerated SprayWhen the flow rate is too low to produce an aerated or laminar stream, a spray device is used to produce a miniature shower pattern to provide full coverage of the hands during washing. Sprays are recommended for use in public lavatories. |
