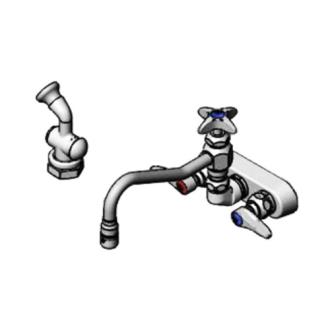

Workboard Faucet Wall Mount 4 Centers 8 Swing Nozzle w

Body-Mount: Wall
Body: 4" Centers (102 mm) Workboard
Cartridge-Spindle: 1/4 Turn Compression
Handle: 4 Arm Lever
Nozzle: Swivel 8" (203 mm) Nozzle
Nozzle Outlet Flow Rate: 2.20 GPM (8.33 L/min)
Nozzle Outlet Type: Aerator Flow Control Device Rosespray

T&S Brass

B-1156

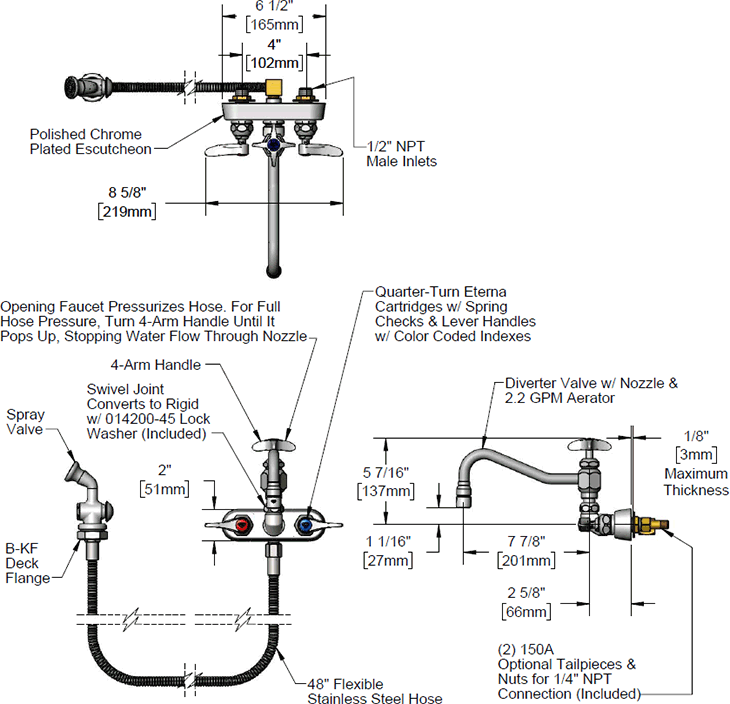

4" wall mount mixing faucet with chrome plated brass body, swivel diverter valve with 7-7/8" nozzle with 2.2 GPM aerator, compression cartridges with spring checks, lever handles, 1/2" NPT male inlets, chrome plated escutcheon, self-closing spray valve with 2.2 GPM rosespray, 48" flexible stainless steel hose and deck flange hose guide. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372.

Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
Temperature: 40°F - 140°F (4.44°C - 60°C)

Download: Specs | Installation
