Double Pedal Valve Wall Mount Loose Key Angle Stops Slow

T&S Brass

B-0504-03SL

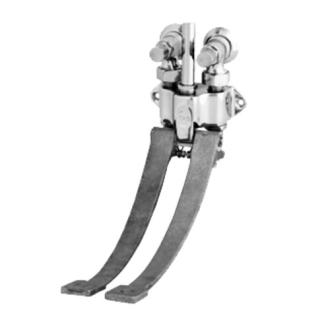

Wall mount double pedal valve, polished chrome plated solid brass body, 1/2" NPT female outlet, adjustable height aluminum pedals, slow self-closing metering cartridges, 1/2" NPT female loose key angle stop inlets and mounting screws. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372.

Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
Temperature: 40°F - 140°F (4.44°C - 60°C)
Water Consumption: @ 10 sec = .37 gal
6.02 GPM @ 60 psi (22.79 L/min @ 4.14 bar)

^$ 1059.55

42731825
