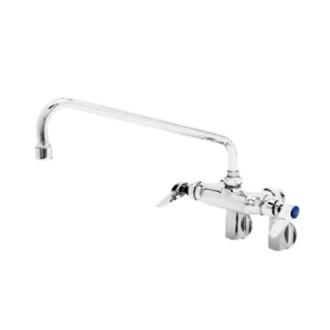

Double Pantry Faucet Wall Mount Adjustable Centers 12 Sw
T&S Brass
B-0236Wall mount mixing faucet with polished chrome plated brass body, 12" swing nozzle with stream regulator outlet, compression cartridges with spring checks, lever handles and 1/2" NPT female adjustable arm inlets. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
- Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
42731512
Double Pantry Faucet Wall Mount Adjustable Centers 12 Sw
$
353.33
/ each
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits
- Adjustable inlet wall mount mixing faucet with polished chrome plated brass body
- 12" swing nozzle
- Lock washer included for rigid applications
- Stream regulator outlet, Series 1
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent crossflow of water
- Lever handles w/ color coded indexes
- 1/2" NPT female adjustable arm inlets w/ 2" flanges
- Adjustable centers from 2 1/4" to 8 1/4" above or below centerline
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
Variations
- -02, -EK & -KIT Includes short elbow installation kit
- -03 Includes built-in soap dish above nozzle
- -A22-CVH Includes 2.2 GPM aerator and check valves
- -BB Includes 3/4" NPT "BB"-type female inlets
- -BST Includes built-in stops
- -CC Includes 1/2" NPT "CC"-type male inlets
- -CR Eterna cartridges replaced with ceramic
- -EE Includes 1/2" NPT "EE"-type male inlets
- -M Master Box, Qty 6
- -SC Includes spring check valves
- -VF22-EL Includes short elbow kit & vandal-resistant 2.2 GPM aerator
- -WH4 Includes 4" wrist-action handles
