Double Pantry Faucet Single Hole Base Swivel Gooseneck 13
T&S Brass

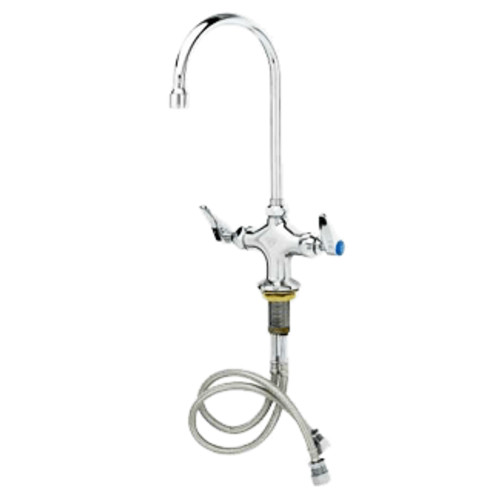

B-0301Single hole deck mount mixing faucet with polished chrome plated brass body, 5 3/4" swivel/rigid gooseneck with stream regulator outlet, compression cartridges with spring checks, lever handles and 18" flexible stainless steel supply hoses w/ 1/2" NPSM / 5/8" O.D compression Connections. ASME A112.18.1 / CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
- Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
- Temperature: 40°F - 140°F (4.44°C - 60°C)
- 8.67 GPM @ 60 psi (32.82 L/min @ 4.14 bar)
Download: Specs | Installation
42731613
Double Pantry Faucet Single Hole Base Swivel Gooseneck 13
$
228.22
/ each
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits

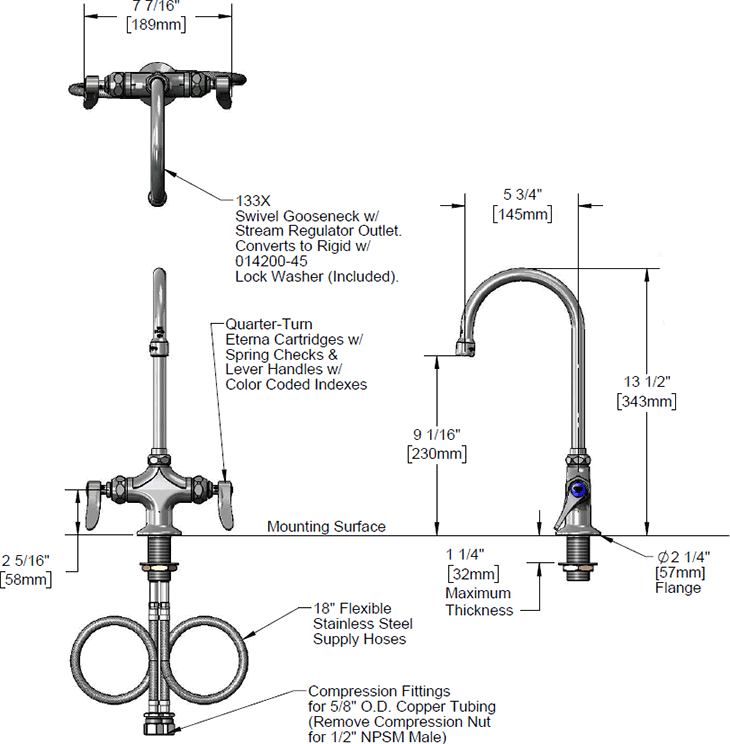

- Single hole deck mount mixing faucet w/ polished chrome plated brass body
- 5 3/4" swivel/rigid gooseneck
- Lock washer provided for rigid application
- Stream regulator outlet, Series 1
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent the cross flow of water
- Lever handles w/ color coded indexes
- 18" flexible stainless steel supply hoses w 1/2" NPSM / 5/8" O.D compression connections
- Material: Polished chrome plated brass body & tubular spout, chrome plated metal handles
Variations
- -01 Includes 2.2 GPM aerator and swivel-to-rigid lock
- -QT Includes quarter-turn cartridges and swivel-to-rigid lock
- -VR Includes vandal-resistant 2.2 GPM aerator and vandal-resistant levers
- -WH4 Lever handles replaced with 4" wrist-action handles
- B-0302 Includes vandal-resistant 2.2 GPM aerator and swivel-to-rigid lock
- B-0317 Includes 4" wrist-action handles and 2.2 GPM aerator
