Double Pantry Faucet Deck Mount 4 Centers Swivel Goosene
T&S Brass

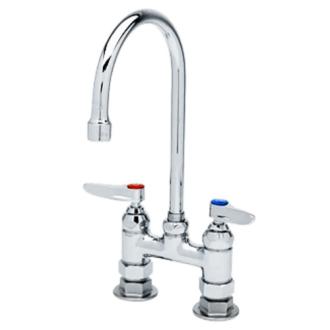

B-03254" deck mount mixing faucet with polished chrome plated brass body, 5 3/4" swivel/rigid gooseneck with stream regulator outlet, compression cartridges with spring checks, lever handles and 1/2" NPT female inlets. Certified to ASME A112.18.1/CSA B125.1, NSF 61- Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
- Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
- Temperature: 40°F - 140°F (4.44°C - 60°C)
- 14.58 GPM @ 60 psi (55.19 L/min @ 4.14 bar)
Download: Specs
42731678
Double Pantry Faucet Deck Mount 4 Centers Swivel Goosene
$
273.68
/ each
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits
- 4" deck mount mixing faucet with polished chrome plated brass body
- 5-3/4" swivel/rigid gooseneck
- Includes lock washer to convert to rigid
- Stream regulator outlet, Series 1
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2" NPT female eccentric inlets w/ 2" flanges
- Adjustable centers from 3 3/4" to 4 1/4"
- Material: Polished chrome plated brass body & tubular spout and polished chrome plated metal handles
Variations
- -CR Eterna cartridges replaced with ceramic
- -CC Includes 1/2" NPT "CC"-type male inlets
- -A22 Stream regulator outlet replaced with 2.2 GPM aerator (B-0199-01)
- -NPL Includes 1/2" NPT male supply nipple kit (B-0425)
- -WH4 Lever handles replaced with 4" wrist-action handles
- -VF05 Stream regulator outlet replaced with vandal-resistant 0.5 GPM non-aerated outlet (B-0199-07-N05)
