8 Wall Mount Mixing Faucet B-0230 Mod w CV Ceramas B-023
T&S Brass

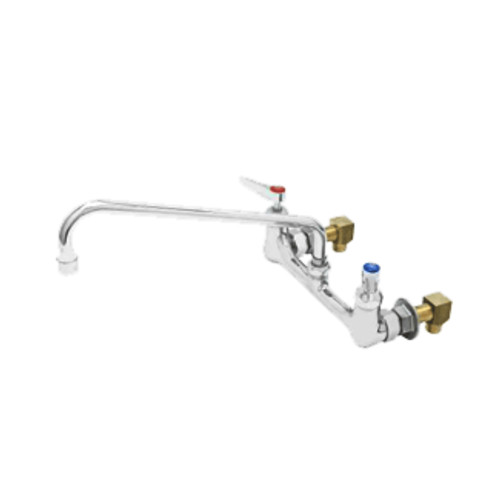

B-0230-CR-SC-EK8" wall mount mixing faucet with polished chrome plated brass body, 18" swing nozzle with stream regulator outlet, ceramic cartridges with check valves, lever handles and 1/2" NPT male inlets. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
- Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
- Temperature: 40°F - 180°F (4.44°C - 82.22°C)
- 10.50 GPM @ 60 psi (39.75 L/min @ 4.14 bar)
42731456
8 Wall Mount Mixing Faucet B-0230 Mod w CV Ceramas B-023
$
342.2
/ each
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits

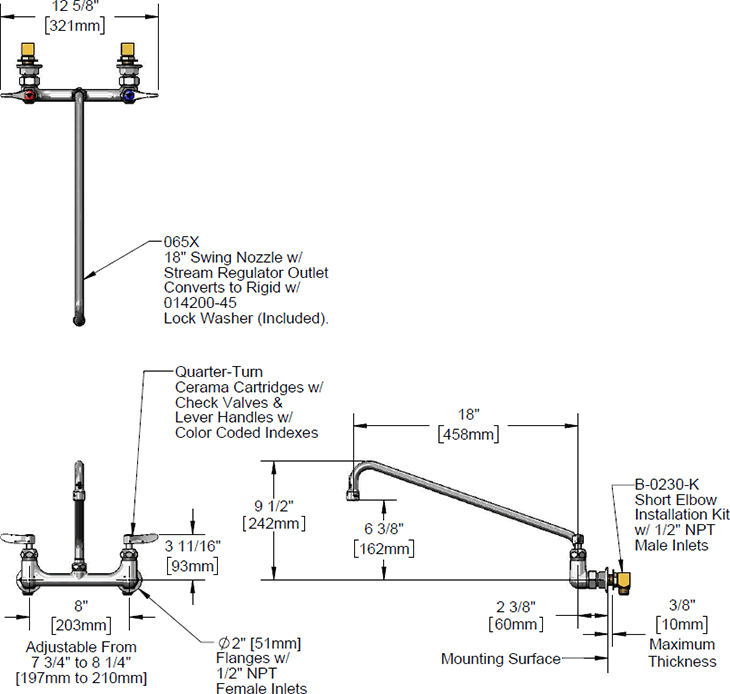

- 8" wall mount mixing faucet with polished chrome plated brass body
- 18" swing nozzle
- Lock washer provided for rigid application
- Stream regulator outlet, Series 1
- Quarter-turn Cerama cartridges w/ check valves to prevent the cross flow of water
- Lever handles w/ color coded indexes
- 1/2" NPT male inlet short elbows
- Adjustable centers from 7 3/4" to 8 1/4"
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
