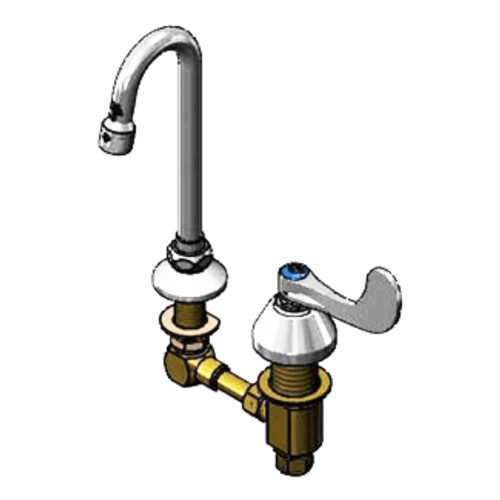

Deck Mount Medical Faucet for Cold Water Only
T&S Brass

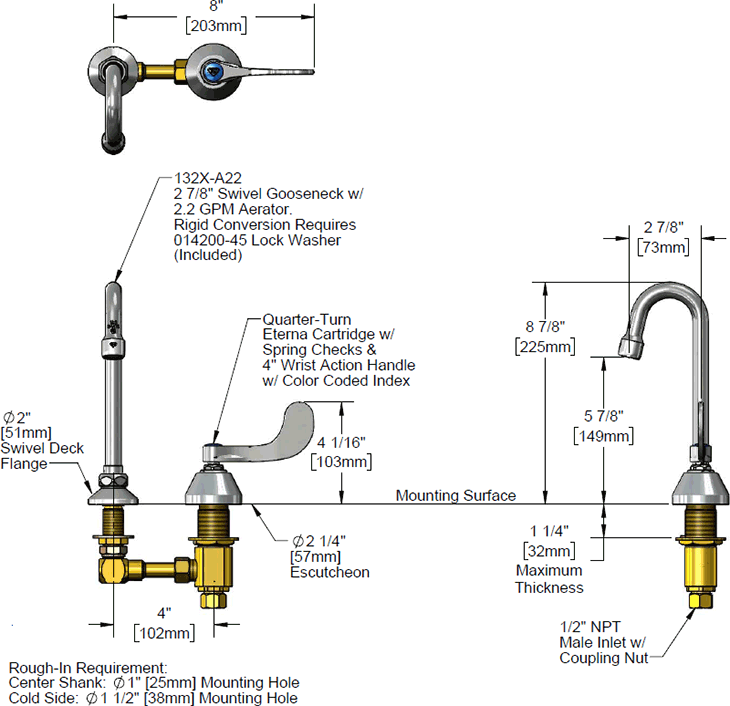

B-2866-04-CW4" concealed deck mount faucet with forged brass body, 2-7/8" swivel/rigid gooseneck with 2.2 GPM aerator, compression cartridge with spring checks, 4" wrist action handle, chrome plated escutcheon and 1/2" NPT male inlet with coupling nut. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
- Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
- Temperature: 40°F - 140°F (4.44°C - 60°C)
- 2.20 GPM @ 60 psi (8.33 L/min @ 4.14 bar)
Downloads: Specification | Installation
42733029
Deck Mount Medical Faucet for Cold Water Only
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits
- 4" EasyInstall concealed deck mount faucet w/ forged brass body
- 2-7/8" swivel gooseneck
- Lock washer provided for rigid application
- 2.2 GPM Aerator, Series (B-0199-01)
- Quarter-turn Eterna compression cartridge w/ spring checks, cold water only
- 4" wrist action handle w/ color coded index
- 1/2" NPT male inlet w/ coupling nut
- Material: Forged brass body, polished chrome plated brass tubular spout and chrome plated metal handles & escutcheon
