Big-Flo Mixing Faucet 8 Wall Mount 14 Swing Nozzle 00LL
T&S Brass

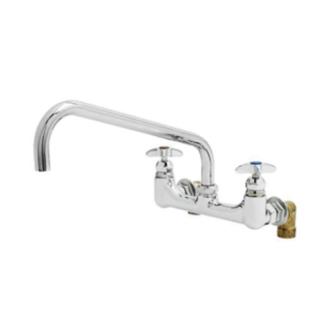

B-0290-148" wall mount large flow mixing faucet with polished chrome plated brass body, 14" swing nozzle with plain end outlet, compression spindles, 4-arm handles, 3/4" NPT female inlets and 3/4" NPT female short inlet elbows. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
- Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
- Temperature: 40°F - 140°F (4.44°C - 60°C)
- 44.27 GPM @ 60 psi (167.58 L/min @ 4.14 bar)

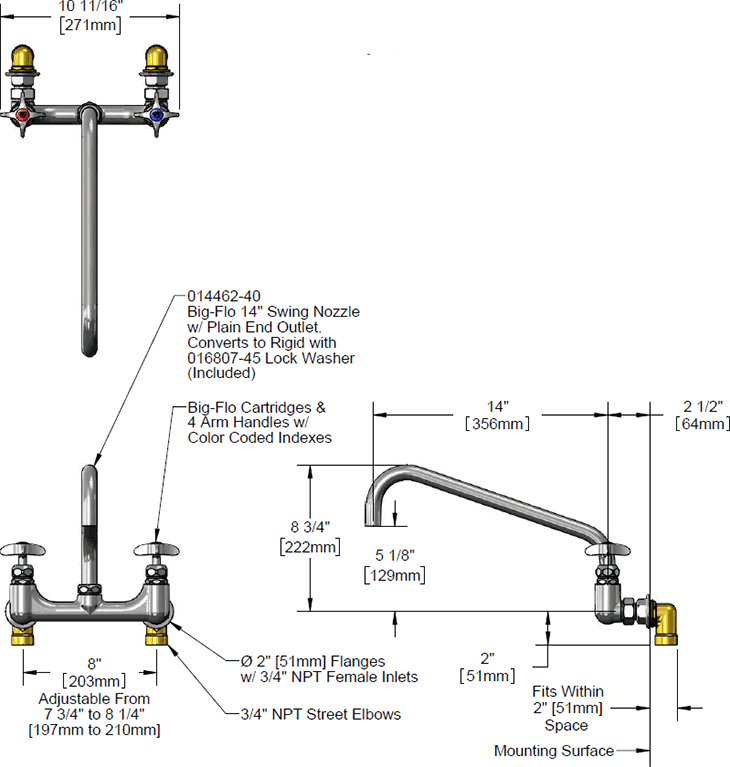

Downloads: Specification | Installation
42731577
Big-Flo Mixing Faucet 8 Wall Mount 14 Swing Nozzle 00LL
$
680.4
/ each
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits
- 8" wall mount Big-Flo mixing faucet with polished chrome plated brass body
- 14" Big-Flo plain end swing nozzle
- Lock washer provided for rigid application
- Big-Flo compression spindles
- 4-arm handles w/ color coded indexes
- 3/4" NPT female eccentric inlets w/ 2" flanges
- Adjustable centers from 7 3/4" to 8 1/4"
- 3/4" NPT female short elbows
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
