Lab Mixing Faucet Rigid Vac. Breaker Gooseneck Serrated Ti
T&S Brass

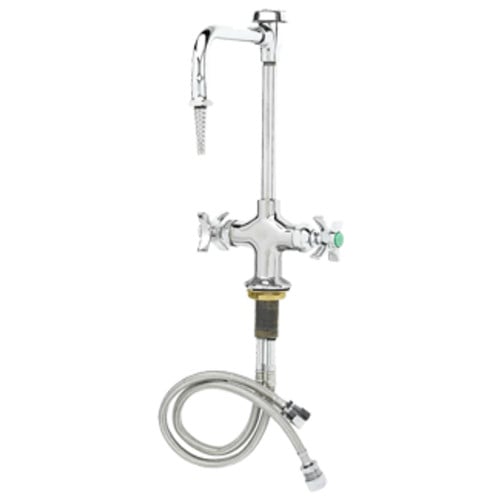

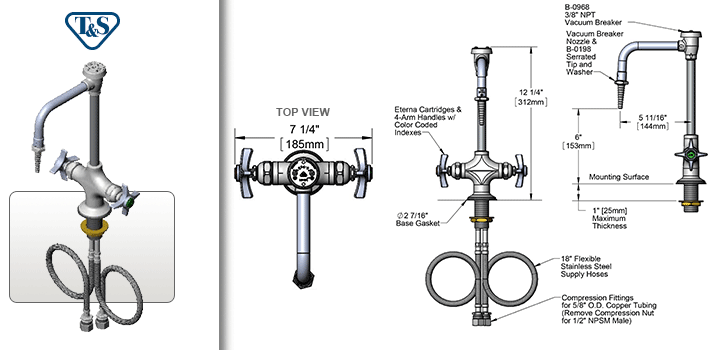

BL-5704-08Single hole deck mount mixing faucet with polished chrome plated brass body, polished chrome plated swivel/rigid vacuum breaker nozzle with serrated tip and 0.5 GPM flow control, compression cartridges with spring checks, 4-arm handles and 18" flexible stainless steel supply hoses with 1/2" NPSM / 5/8" compression connections. Certified to ASME A112.18.1 / CSA B125.1, NSF 61-Section 9, NSF 372 and ASSE 1001. Meets ADA ANSI/ICC A117.1 requirements.
- Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
- Temperature: 40°F - 140°F (4.44°C - 60°C)
42734524
Lab Mixing Faucet Rigid Vac. Breaker Gooseneck Serrated Ti
$
470.37
/ each
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits
- Single hole deck mount mixing faucet w/ polished chrome plated brass body
- Polished chrome plated swivel vacuum breaker nozzle
- Includes lock washer to convert swivel gooseneck to rigid
- Serrated tip outlet w/ 0.5 GPM flow control & washer
- Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
- 4-arm handles w/ color coded indexes
- Plastic mounting gasket
- 18" flexible stainless steel supply hoses w/ 1/2" NPSM / 5/8" compression connections
- Material: Polished chrome plated brass body, tubular spout & handles
Variations
- BL-5704-08WH4 4-arm handles are replaced by 4" wrist-action handles
- BL-5704-08L-QT Uses 1/4-turn Eterna cartridges and 4-arm handles are replaced by lever handles
- BL-5704-09 Swivels at vacuum breaker

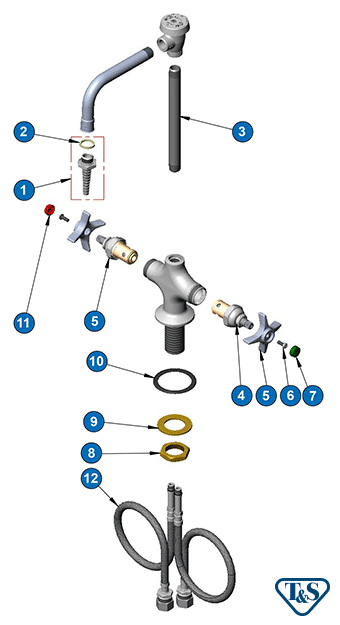

| LABORATORY FAUCETS BL-5704-08 | ||
01 |
Serrated Tip w/ Washer | SKU: B-0198 |
02 |
Washer | SKU: 001051-45 |
03 |
3/8" NPT x 7" Riser | SKU: 000363-40 |
04 |
Eterna Cartridge (right-to-close) | SKU: 005960-40 |
05 |
4-arm Lab Handle | SKU: 000059-40 |
06 |
Lab Handle Screw | SKU: 000925-45 |
07 |
Cold Water Index (green) | SKU: 001191-45 |
08 |
Locknut | SKU: 000965-45 |
09 |
Lockwasher | SKU: 002290-45 |
10 |
Black Plastic Gasket | SKU: 145L |
11 |
Hot Water Index (red) | SKU: 001194-45 |
12 |
18" Flexible Supply Hose (pair) | SKU: 012534-45 |
