Lab Fixture Gas Water 2 Gas Cocks 6 Vacuum Breaker Goo
T&S Brass

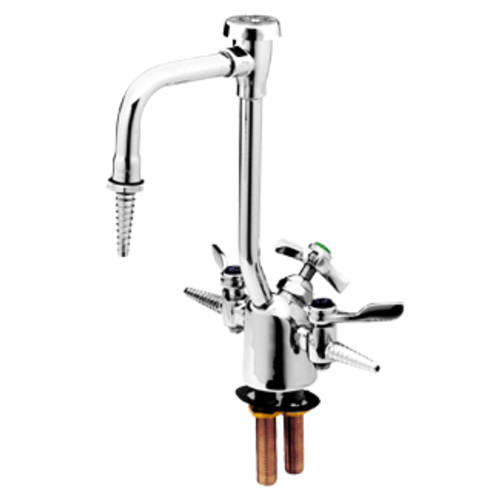

BL-6005-02Combination gas and water laboratory turret with polished chrome plated brass body, polished chrome plated rigid nozzle with vacuum breaker and serrated tip outlet with 0.5 GPM flow control, hose cocks, 4-arm handle and 3/8" NPT male gas and water inlets. Certified to ASME A112.18.1 / CSA B125.1, NSF 61- Section 9, NSF 372, ASSE 1001 and ANSI Z21.15a / CSA 9.1a. Meets ADA ANSI/ICC A117.1 requirements.
- Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
- Pressure: Gas - 0.5 psi max (0.00 bar - 0.03 bar)
- Temperature: 40°F - 140°F (4.44°C - 60°C)
- Temperature: Gas - 32°F - 125°F (0°C - 51.67°C)
42734582
Lab Fixture Gas Water 2 Gas Cocks 6 Vacuum Breaker Goo
$
567.38
/ each
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits
- Combination gas and water laboratory turret w/ polished chrome plated brass body
- Polished chrome plated rigid nozzle w/ vacuum breaker
- Serrated tip outlet w/ 0.5 GPM flow control & washer
- (2) hose cocks
- 4-arm handle w/ color coded index
- 3/8" NPT male gas and water inlets
- Material: Polished chrome plated brass body & tubular spout, polished chrome metal handles

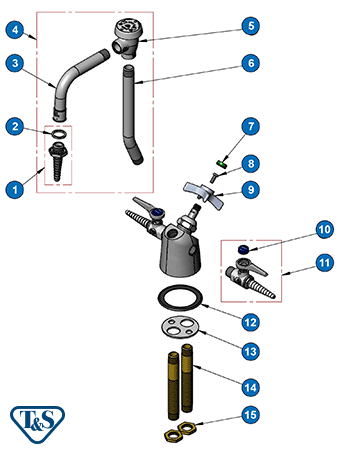

| LABORATORY FAUCETS BL-6005-02 | ||
01 |
Serrated Tip w/ Washer | SKU: B-0198 |
02 |
Washer | SKU: 001051-45 |
03 |
6-inch 3/8" NPT Brass Nozzle | SKU: 106X |
04 |
Rigid Nozzle w/ Vacuum Breaker and Serrated Tip | SKU: 002986-40 |
05 |
3/8" NPT Vacuum Breaker | SKU: B-0968 |
06 |
7" Riser | SKU: 001522-40 |
07 |
Cold Water Index (green) |
SKU: 001191-45 |
08 |
Lab Handle Screw | SKU: 000925-45 |
09 |
4-arm Lab Handle | SKU: 000059-40 |
10 |
Snap-in Gas Index (dark blue) |
SKU: 209L-GAS |
11 |
Ball Valve Hose Cock w/ Gas, Air and Vacuum Indices | SKU: BL-4000-01 |
12 |
Gasket | SKU: 001160-45 |
| BL-6005-02 (CONT'D) | ||
13 |
Brass Turret Washer | SKU: 001004-45 |
14 |
3/8" NPT Brass Supply Nipple | SKU: 000381-20 |
15 |
3/8" NPSL Brass Locknut | SKU: 000969-45 |
