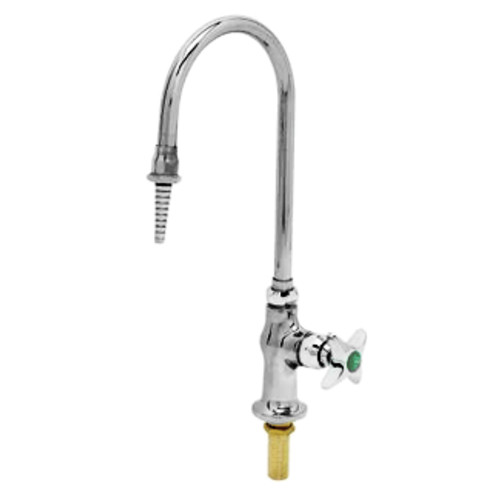

Lab Faucet Single Temperature Control Rigid Gooseneck Ser
T&S Brass
BL-5705-01Single hole single temperature deck mount faucet with polished chrome plated brass body, 5-7/8" swivel/rigid gooseneck with serrated tip outlet, compression cartridge with spring check, 4-arm handle and 1/2" NPSM male inlet. Certified to ASME A112.18.1 / CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
- Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
- Temperature: 40°F - 140°F (4.44°C - 60°C)
- 4.32 GPM @ 60 psi (16.35 L/min @ 4.14 bar)
Downloads: Specification
42734527
Lab Faucet Single Temperature Control Rigid Gooseneck Ser
$
214.05
/ each
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits
- Single hole single temperature deck mount faucet w/ polished chrome plated brass body
- 5 7/8" swivel/rigid gooseneck
- Includes lock washer to convert swivel gooseneck to rigid
- Serrated tip outlet
- Quarter-turn Eterna compression cartridge w/ spring check
- 4-arm handle w/ green index
- 1/2" NPSM male inlet
- Optional tailpiece and nut for 1/4" NPT male connection
- Material: Polished chrome plated brass body & tubular spout ` and chrome plated metal handle
Variations
- BL-5705-02 Rigid gooseneck is replaced by swivel gooseneck
- BL-5705-03 Rigid gooseneck is replaced by swivel gooseneck, and includes swivel-to-rigid conversion washer
- BL-5705-04 Serrated tip is replaced by a non-splash aerator (B-0199-02)

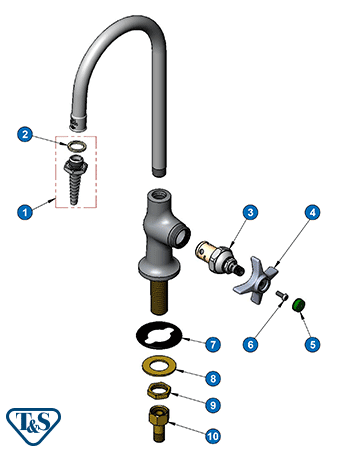

| LABORATORY FAUCETS BL-5705-01 | ||
01 |
Serrated Tip w/ Washer | SKU: B-0198 |
02 |
Washer | SKU: 001051-45 |
03 |
Eterna Cartridge (right-to-close) | SKU: 005960-40 |
04 |
4-arm Lab Handle | SKU: 000059-40 |
05 |
Cold Water Index (green) | SKU: 001191-45 |
06 |
Lab Handle Screw | SKU: 000925-45 |
07 |
Black Plastic Gasket | SKU: 144L |
08 |
Brasss Lockwasher | SKU: 000999-45 |
09 |
Shank Locknut | SKU: 002954-45 |
10 |
1/4" NPT Tailpiece and Nut | SKU: 150A |
