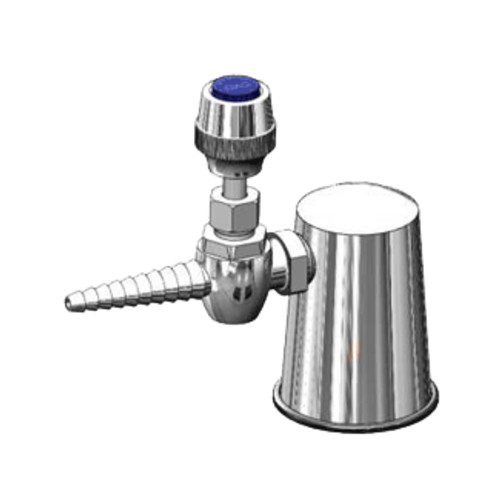

Lab Turret, Tapered w/ (1) Needle Hosecock
T&S Brass
BL-4210-01Laboratory turret with polished chrome plated brass body, serrated tip outlet and 3/8" NPT female inlet. Certified to ANSI Z21.15a / CSA 9.1a.
- Pressure: Temperature - 32°F - 125°F
- Body-Mount: Deck
- Body:
- Single Temp
- Turret
- Single Hole
42734432
Lab Turret, Tapered w/ (1) Needle Hosecock
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits
- Laboratory turret with polished chrome plated brass body

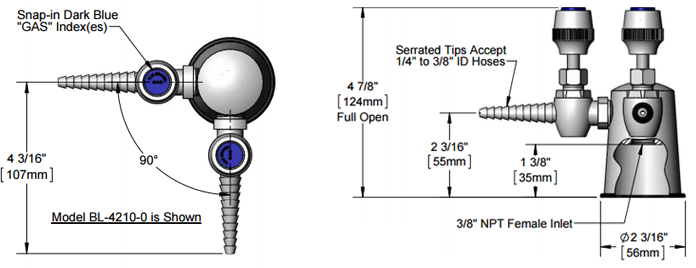

- Serrated tip outlet, fits 1/4" to 3/8" I.D. hoses
- Special packing in valve suitable for Oxygen, Hydrogen, and other special gases
- 3/8" NPT female inlet in base
- Black plastic base gasket
- Material: Polished chrome plated brass body

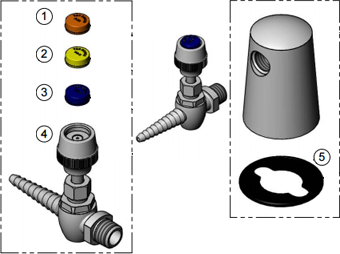

01 |
209L-AIR | Cap, Index, Orange, Air |
02 |
209L-VAC | Cap, Index, Yellow, Vacuum |
03 |
209L-GAS | Cap, Index, Blue, Gas |
04 |
BL-4010-01 | Needle Valve Hose Cock w/ GAS, AIR & VAC Indexes |
05 |
144L | Gasket Polypropylene |
|
NOTE: Turret Body sold separately with gasket as BL-4100-XX. -XX suffix references the number of outlets and their orientation per turret. See specification sheet for list of suffixes. |
||
