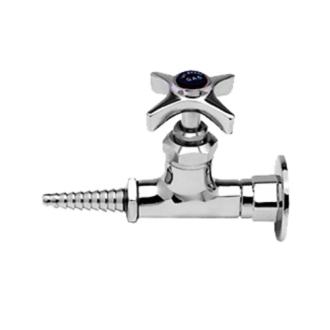

Lab Panel Flange Straight Stop Serrated Tip Outlet 3 8 N
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits
- Panel flange straight stop w/ polished chrome plated brass body
- Internal floating stainless steel cone regulates gas flow as handle is turned
- Serrated tip outlet, fits 1/4" to 3/8" I.D. hoses
- 4-arm handle
- Press-in color coded indexes (gas, vacuum & air included)
- 3/8" NPT female inlet
- Material: Polished chrome plated brass body & chrome plated metal handle
BL-4350-01
01 |
Flange, 3/8" NPT | SKU: BL-4250-03 |
02 |
Spindle Asm., BL-4500-01 | SKU: 110A |
03 |
Four-Arm Lab Handle | SKU: 000059-40 |
04 |
Lab Handle Screw | SKU: 000925-45 |
05 |
Cap, Index, Blue, Gas | SKU: 209L-GAS |
06 |
Serrated Tip | SKU: B-0198 |
07 |
Washer | SKU: 001051-45 |
08 |
Seat, BL-4500-01 | SKU: 000529-40 |
09 |
O-Ring, Nitrile, -012 | SKU: 001070-45 |
10 |
Cap, Index, Yellow, Vacuum | SKU: 209L-VAC |
11 |
Cap, Index, Orange, Air | SKU: 209L-AIR |
12 |
Straight Stop w/ Color Coded Indexes | SKU: BL-4500-01 |
BL-4355-01
01 |
Flange, 3/8" NPT | SKU: BL-4250-03 |
02 |
Spindle Asm., Eterna "Hot" | SKU: 005960-40 |
03 |
Four-Arm Lab Handle | SKU: 000059-40 |
04 |
Lab Handle Screw | SKU: 000925-45 |
05 |
Hose End, Serrated, Brass, PLTD | SKU: B-0198 |
06 |
Washer, 7/8" OD X 11/16 ID X 3/32 Thick | SKU: 009641-45 |
07 |
Cap, Index, Green, Cold Water | SKU: 001191-45 |
