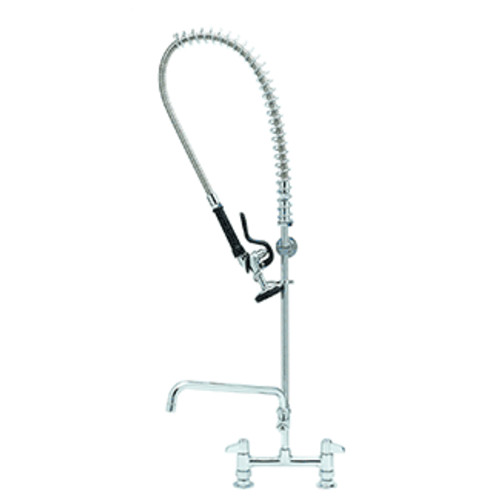

Pre-Rinse 8 Centers Deck Mount 12 Add-On Faucet
T&S Brass

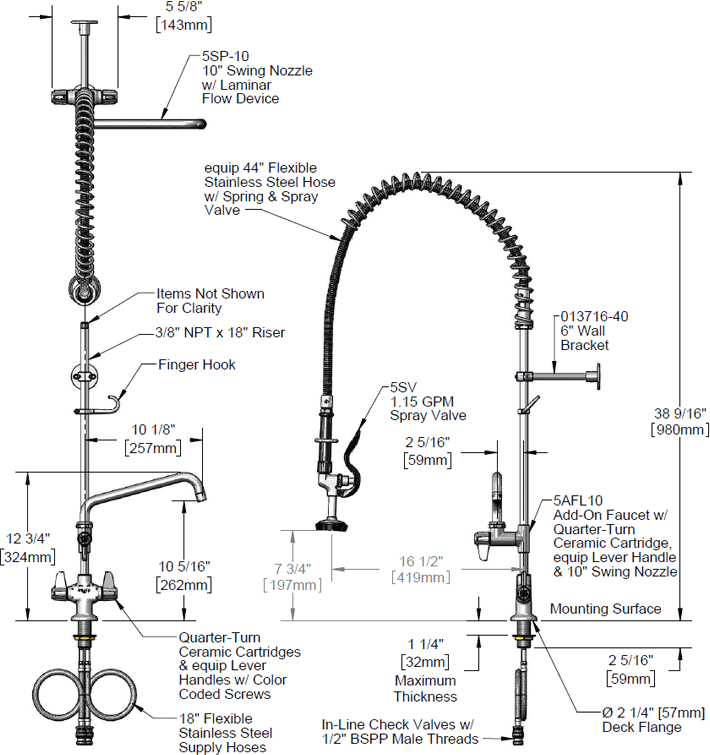

5PR-8D128" deck mount mixing faucet with polished chrome plated brass body, add-on faucet with ceramic cartridge and lever handle, 12-1/8" swing nozzle with laminar flow device, 18" riser, 44" flexible stainless steel hose with heat resistant handle, 1.15 GPM spray valve, ceramic cartridges, lever handles, in-line check valves, 1/2" NPT female inlets, 6" adjustable wall bracket, spray valve holder and overhead spring. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. 2019 DOE PRSV - Class II compliant.
- Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
- Temperature: 40°F - 140°F (4.44°C - 60°C)
Product Details
- Box Dimensions: 12x28x4
- Weight: 14.75 lbs (6.69 kg)
- UPC: 671262593984
- Harmonize: 8481.80.5060
42729806
Pre-Rinse 8 Centers Deck Mount 12 Add-On Faucet
$
494.83
/ each
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits
- 8" deck mount mixing faucet w/ polished chrome plated brass body & 2-1/4" Deck Flange
- Add-on faucet w/ polished chrome plated brass body
- 12-1/8" swing nozzle w/ laminar flow device
- 18" rigid riser
- 44" flexible stainless steel hose w/ heat resistant black handle and hold down ring
- 1.15 GPM spray valve
- Quarter-turn ceramic cartridges
- Lever handles w/ color coded screws
- In-line check valves
- 1/2" female inlets
- 6" adjustable wall bracket
Attributes
- Body-Mount: Deck
- Body: 8" Centers (203 mm)
- Inlet: 1/2" NPT Female (13 mm)
- Cartridge-Spindle: Ceramic
- Handle: Lever
- Nozzle:
- Swivel
- 12" (305 mm)
- Nozzle Outlet Type: Laminar Flow Device
- Spray Valve: EQUIP 5SV (1.15 GPM) (4.35 L/min)
- Feature:
- Check Valve
- 6" Wall Bracket (152 mm)
