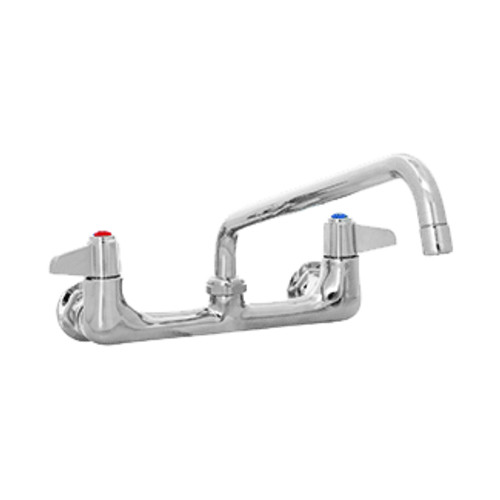

Faucet Wall Mount 8 Centers 12 Swing Nozzle
T&S Brass
5F-8WLX128" wall mount mixing faucet with polished chrome plated brass body, 12" equip swing nozzle, ceramic cartridges, equip lever handles and 1/2" NPT female inlets. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirments.
- Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
- Temperature: 40°F - 140°F (4.44°C - 60°C)
- 5.20 GPM @ 60 psi (19.68 L/min @ 4.14 bar)
Product Details
- Box Dimensions: 16x11x4
- Weight: 4.85 lbs (2.20 kg)
- UPC: 671262565899
- Harmonize: 8481.80.5060
42729720
Faucet Wall Mount 8 Centers 12 Swing Nozzle
$
188.23
/ each
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits

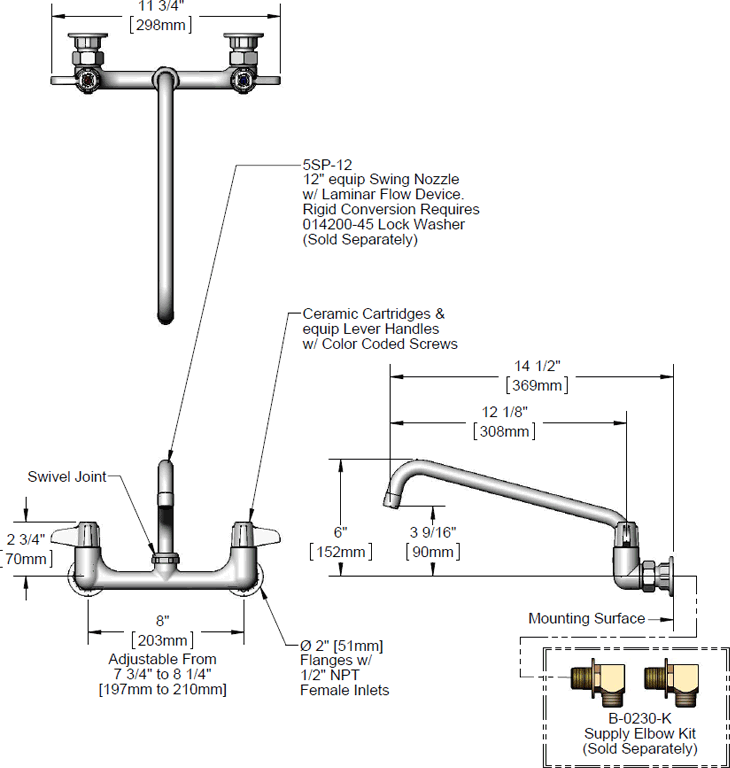

- 8" wall mount mixing faucet with polished chrome plated brass body
- 12" equip swing nozzle w/ laminar flow device
- Ceramic cartridges
- equip lever handles w/ color coded screws
- 1/2" NPT female inlets w/ 2" wall flanges
Attributes
- Body-Mount: Wall
- Body: 8" Centers (203 mm)
- Inlet: 1/2" NPT Female (13 mm)
- Cartridge-Spindle: Ceramic
- Handle: Lever
- Nozzle:
- Swivel
- 12" (305 mm)
- Nozzle Outlet Type: Laminar Flow Device
