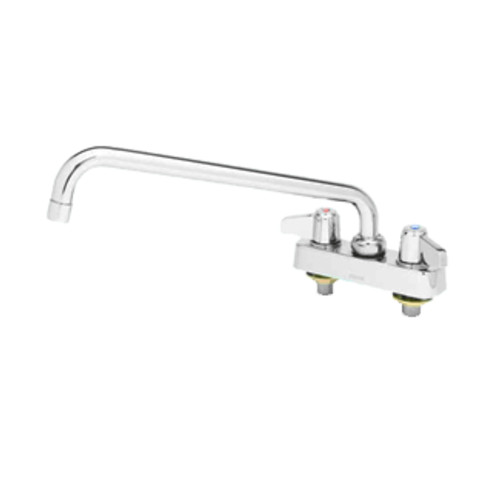

Equip 4 c c Deck Mount Workboard Faucet 10 Swing Nozzle
T&S Brass

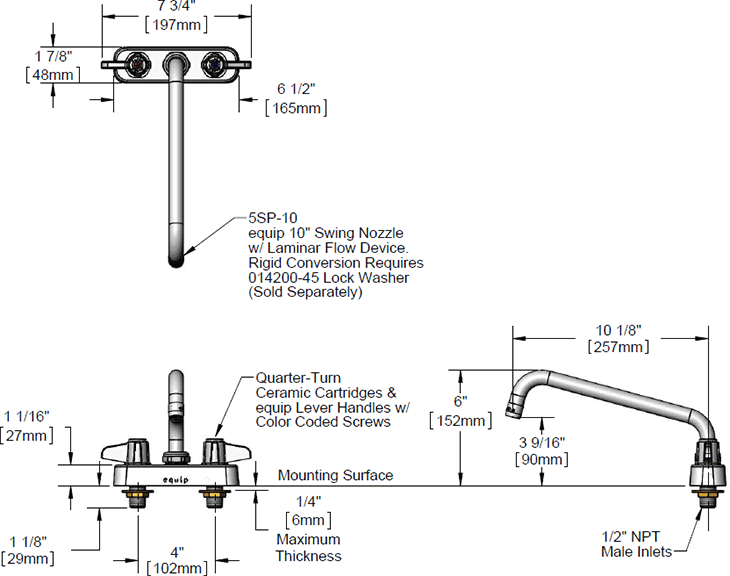

5F-4CLX104" deck mount mixing faucet with polished chrome plated brass body, 10" equip swing nozzle with laminar flow device, ceramic cartridges, equip lever handles and 1/2" NPT male inlets. Certified to ASME A112.18.1\CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI\ICC A117.1 requirements.
- Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
- Temperature: 40°F - 140°F (4.44°C - 60°C)
- 5.03 GPM @ 60 psi (19.04 L/min @ 4.14 bar)
Product Details
- Box Dimensions: 16x11x4
- Weight: 3.45 lbs (1.56 kg)
- UPC: 671262744928
- Harmonize: 8481.80.5060
42729606
Equip 4 c c Deck Mount Workboard Faucet 10 Swing Nozzle
$
190.9
/ each
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits
- 4" deck mount mixing faucet w/ polished chrome plated brass body
- 10" equip swing nozzle w/ laminar flow device
- Quarter-turn ceramic cartridges
- equip lever handles w/ color coded screws
- 1/2" NPT male inlets
Attributes
- Body-Mount: Deck
- Body: 4" Centers (102 mm)
- Cartridge-Spindle: Ceramic
- Handle: Lever
- Nozzle:
- Swivel
- 10" (254 mm)
- Nozzle Outlet Type: Laminar Flow Device
