8 Wall Mount Faucet Lever Handles 00EE Wall Flanges Les
T&S Brass

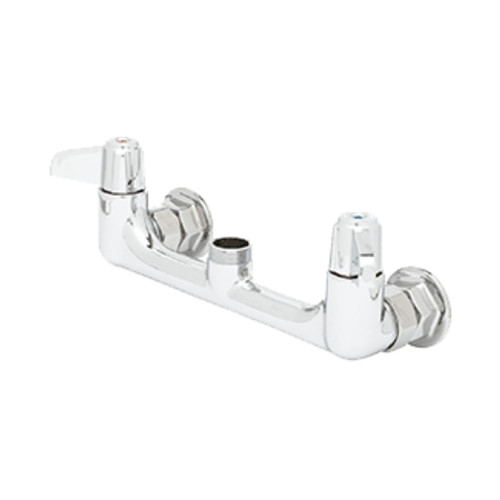

5F-8WLX00-EE8" wall mount mixing faucet with polished chrome plated brass body, less nozzle, ceramic cartridges, equip lever handles and 1/2" NPT male inlets. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
- Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
- Temperature: 40°F - 140°F (4.44°C - 60°C)
- 19.70 GPM @ 60 psi (74.57 L/min @ 4.14 bar)
Product Details
- Box Dimensions: 14x9x4
- Weight: 4.00 lbs (1.81 kg)
- UPC: 671262725422
- Harmonize: 8481.80.5060
42729714
8 Wall Mount Faucet Lever Handles 00EE Wall Flanges Les
$
178.88
/ each
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits

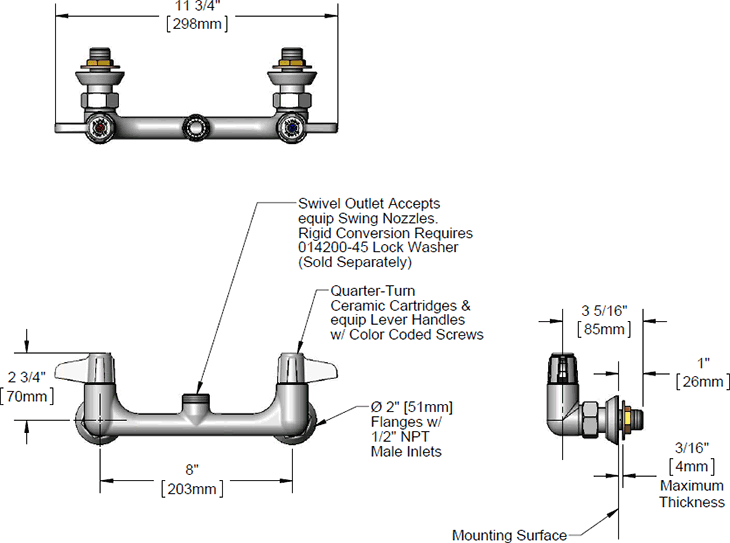

- 8" wall mount faucet with polished chrome plated brass body
- Swivel outlet accepts equip swing nozzles
- Quarter-turn ceramic cartridges
- equip lever handles w/ color coded screws
- 1/2" NPT male inlets
Attributes
- Body-Mount: Wall
- Body: 8" Centers (203 mm)
- Inlet:
- 1/2" NPSL Male (13 mm)
- Adjustable Flange
- Cartridge-Spindle: Ceramic
- Handle: Lever
- Nozzle: Less Nozzle
