4 Deck Mount Faucet 5-1 2 Swivel Gooseneck 4 Wrist Hand
T&S Brass

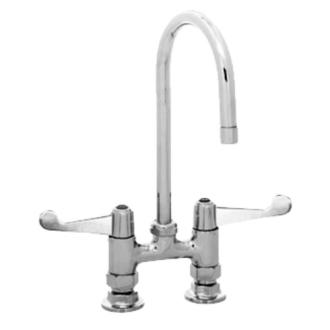

5F-4DWS054" deck mount mixing faucet with polished chrome plated brass body, 5-9/16" equip swivel gooseneck with laminar full flow device, ceramic cartridges, equip 4" wrist action handles and 1/2" NPT male inlets. Certified to ASME A112.18.1\CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI\ICC A117.1 requirements.
- Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
- Temperature: 40°F - 140°F (4.44°C - 60°C)
- 5.20 GPM @ 60 psi (19.68 L/min @ 4.14 bar)
Product Details
- Box Dimensions: 16x11x4
- Weight: 4.85 lbs (2.20 kg)
- UPC: 671262707299
- Harmonize: 8481.80.5060
42729634
4 Deck Mount Faucet 5-1 2 Swivel Gooseneck 4 Wrist Hand
$
250.53
/ each
Item Added to Cart
|
SKU
|
Description
|
Quantity
|
|
|---|---|---|---|
|
|
More Info
Features & Benefits

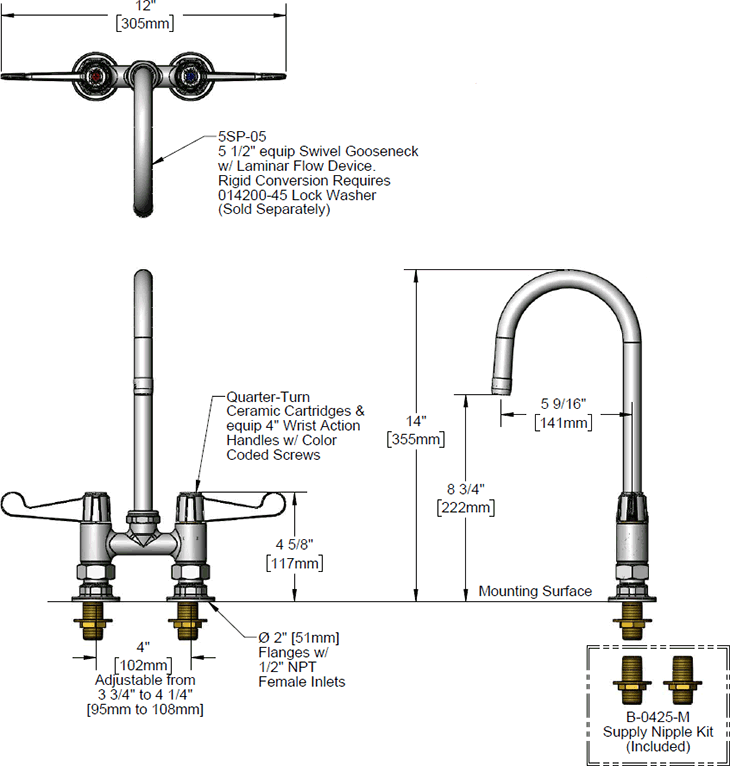

- 4" deck mount mixing faucet w/ polished chrome plated brass body
- 5-9/16" equip swivel gooseneck w/ laminar full flow device
- Quarter-turn ceramic cartridges
- equip 4" wrist action handles w/ color coded screws
- 1/2" NPT female eccentric inlets w/ 2" flanges
- Adjustable centers from 3-3/4" to 4-1/4"
- 1/2" NPT male supply nipple kit
Attributes
- Body-Mount: Deck
- Body: 4" Centers (102 mm)
- Inlet: 1/2" NPT Female (13 mm)
- Cartridge-Spindle: Ceramic
- Handle: 4" Wrist (102 mm)
- Nozzle:
- Swivel
- Gooseneck
- 6" (152 mm)
- Nozzle Outlet Type: Laminar Flow Device
