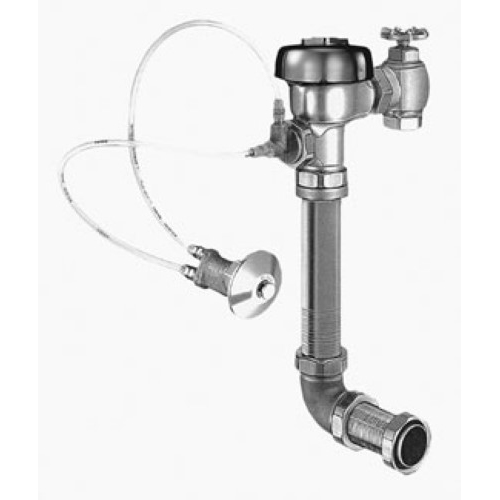

Sloan Regal 9603-1.6 XL L ACTUATOR 3988231 Concealed Flus

Sloan

3988231

Royal®, Regal® and Sloan® Prison Flush Valves feature all the performance benefits of standard concealed, diaphragm model Flush Valves with added durability to withstand rough environments
Flush volumes as low as 0.5 gpf/1.9 Lpf meet water-efficiency goals
Choose from Flush Valves intended for use with stainless-steel urinal fixtures from various manufacturers
Diaphragm, handle packing, stop seat and vacuum breaker molded from PERMEX® rubber compound for chloramine resistance
Vandal-proof, push button operation with ADA-compliant fixture wall or panel-mount actuator options on select models
Non-hold-open feature keeps fixture from surpassing intended water consumption
Adjustable tailpiece accommodates various installations
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037.
