Medical Faucet Concealed Body 8 Centers Push Button Mete

T&S Brass

B-2821

8" concealed deck mount mixing faucet with forged brass body, 5 3/4" swivel/rigid gooseneck with 2.2 GPM aerator, metering cartridges, push button caps, chrome plated escutcheons, 1/2" NPT male inlets with coupling nuts and pop-up drain assembly. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.

  • Pressure: 20 - 125 psi (1.38 bar - 8.62 bar)
  • Temperature: 40°F - 140°F (4.44°C - 60°C)
  • 2.20 GPM @ 60 psi (8.33 L/min @ 4.14 bar)

Downloads: Specs | Install | Submittal

$ 548.00
42732970

Secure transaction
42732970

Medical Faucet Concealed Body 8 Centers Push Button Mete

$ 548 / each
Item Added to Cart
SKU
Description
Quantity
Show Cart

More Info

Features & Benefits

  • 8" EasyInstall concealed deck mount mixing faucet w/ forged brass body
  • 5-3/4" swivel/rigid gooseneck
  • 2.2 GPM aerator, Series 1 (B-0199-01)

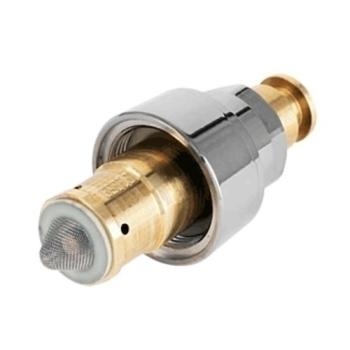

  • Metering cartridges
  • Adjustable metering cycle 10 to 30 seconds

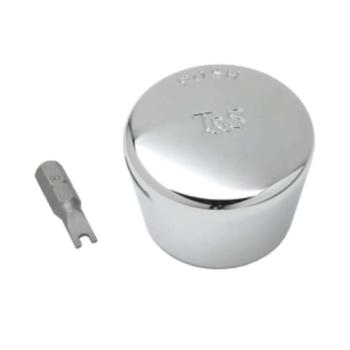

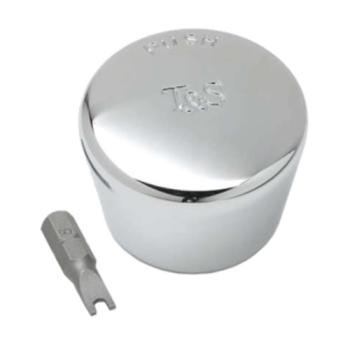

  • Push button caps w/ vandal resistant screw

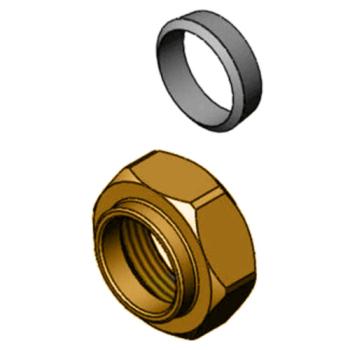

  • 1/2" NPT male inlets with coupling nuts
  • Pop-up drain assembly with overflow opening and 1-1/4" brass tailpiece
  • Material: Brass body, chrome plated metal handles and escutcheons, polished chrome plated brass tubular spout, brass drain assembly with chrome plated drain stop
