    R-1006-A Regal Master Rebuild Kit 1.28 gpf 4.8 Lpf Clo

    Sloan

    3317020
    • Part Number: 3317020
    • Weight: 0.4 lbs.
    • R-1006-A Model
    • 1.28 gallons or 4.8 liters per flush
    • Dimensions: 3.6 x 3 x 3.6 inches
    • Includes the following:
      • Diaphragm Assembly
        (includes relief valve, molded disc, guide assembly and diaphragm)
      • Handle repair kit with triple seal packing
      • High back pressure vacuum breaker repair kit
      • Tailpiece O-ring

    Downloads: Troubleshooting | Parts Guide

    $ 26.49
    3317020

    Secure transaction
    Material Safety Data Sheets (MSDS)
    Quote Checkout
    3317020

    R-1006-A Regal Master Rebuild Kit 1.28 gpf 4.8 Lpf Clo

    $ 26.49 / each
    Item Added to Cart
    SKU
    Description
    Quantity
    Show Cart

    More Info

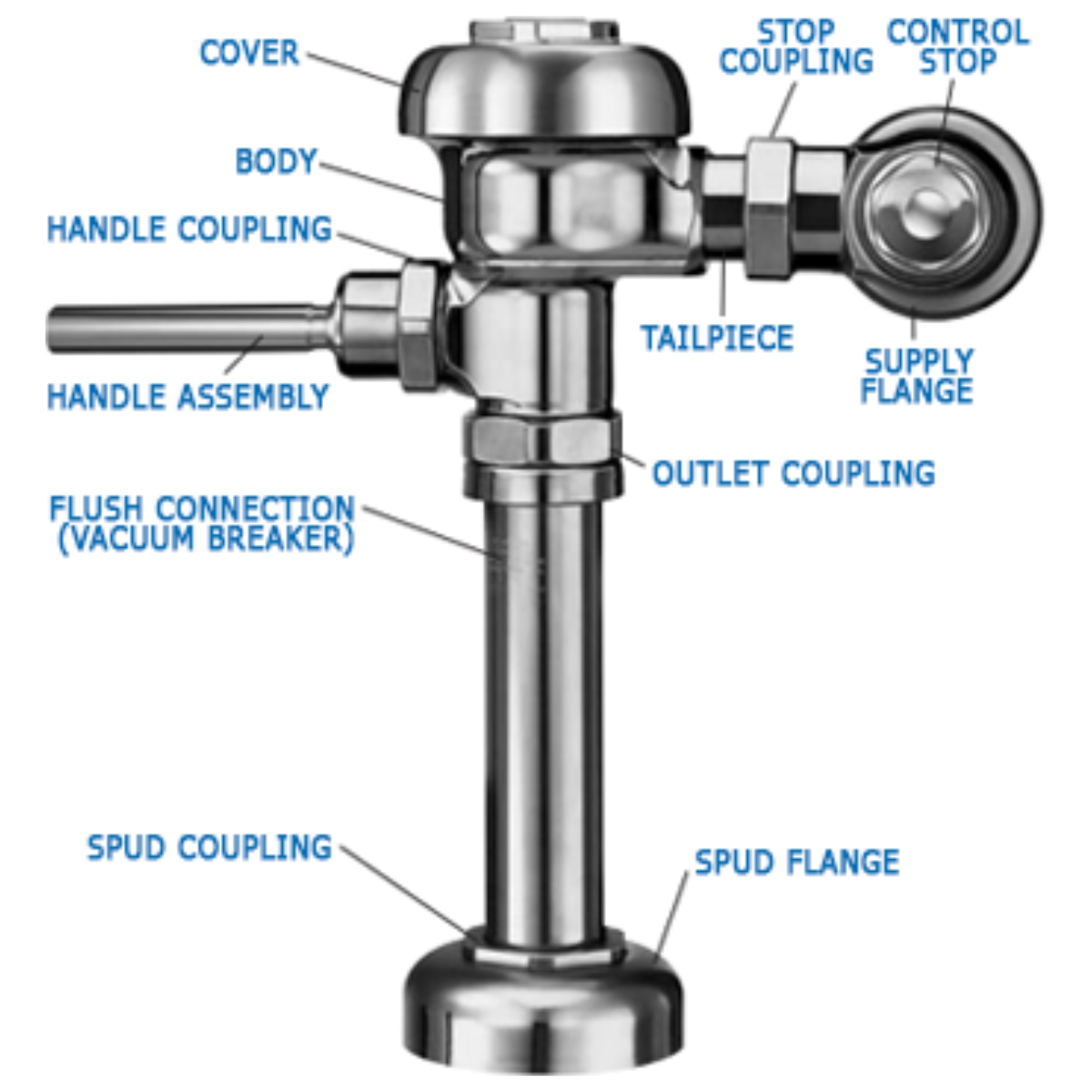

    Sloan Valve Regal Flushometers

    Regal Flushometer

    Regal Flushometers provide water savings while maintaining performance advantages. Features such as an accurate flush delivery system, quiet performance and durable components add to the economics of the Regal Flushometer.

    Master Rebuilding Kits
    Code No. Part No. Description
    3317001 R-1001-A Rebuild Kit (4.5 gpf/17.0 Lpf) Closet / Service Sink
    3317002 R-1002-A Rebuild Kit (1.5 gpf/5.7 Lpf) Urinal
    3317003 R-1003-A Rebuild Kit (3.5 gpf/13.2 Lpf) Closet
    3317004 R-1004-A Rebuild Kit (1.6 gpf/6.0 Lpf) Closet
    3317005 R-1005-A Rebuild Kit (1.0 gpf/3.8 Lpf) LC Urinal
    3317011 R-1011-A Rebuild Kit (0.5 gpf/1.9 Lpf) Urinal
    3317012 R-1012-A Rebuild Kit (2.4 gpf/9.0 Lpf) Closet

    Inside Parts Kits (see chart below)
    Code No. Part No. Application
    A. 3301036 A-36-A 4.5 gpf/17.0 Lpf - Closet
    B. 3301037 A-37-A 1.5 gpf/5.7 Lpf - Urinal
    C. 3301038 A-38-A 3.5 gpf/13.2 Lpf - Closet
    D. 3301041 A-41-A 1.6 gpf/6.0 Lpf - Closet
    E. 3301044 A-42-A 1.0 gpf/3.8 Lpf - Urinal
    F. 3301081 A-43-A 0.5 gpf/1.9 Lpf - Urinal
    G. 3301024 A-44-A 2.4 gpf/9.0 Lpf - Closet
    A
    4.5gpf/17.0 Lpf
    B
    1.5gpf/5.7 Lpf
    C
    3.5gpf/13.2 Lpf
    D
    1.6gpf/6.0 Lpf
    E
    1.0gpf/3.8 Lpf
    F
    0.5gpf/1.9 Lpf
    G
    2.4gpf/9.0 Lpf
    Regal Flushometer Specs & Guide

    Inside Parts Componenets (see chart above)
    Item No. Code No. Part No. Description
    3A. 5301058 A-19-AC Relief Valve, White (Closet) - 12 per pkg.
    3B. 5301059 A-19-AU Relief Valve, Black (Urinal) - 12 per pkg.
    3C. 5301211 A-19-ALC Relief Valve, Green (Closet/Urinal-LC) - 12 per pkg.
    3D. 0301143 A-19-AL Relief Valve, Blue (9 Liter Closet) - 12 per pkg.
    4. 5301111 A-15-A Disc - for all Inside Parts Kits - 12 per pkg.
    5. 5301188 A-156-A Diaphragm - for all Inside Parts Kits - 12 per pkg.
    6A. 5301236 A-163-A Guide Assembly 4.5 gpf/17.0 Lpf Closet & 1.5 gpf/5.7 Lpf Urinal - 12 per package
    6B. 5301032 A-152-A Guide Assembly 3.5 gpf/13.2 Lpf Closet - 12 per package
    6C. 5301031 A-151-A Guide Assembly 1.6 gpf/6.0 Lpf LC Closet - 12 per package
    6D. 5301155 A-155-A Guide Assembly 1.0 gpf/3.8 Lpf LC Urinal - 12 per package
    6E. 5301157 A-157-A Guide Assembly 0.5 gpf/1.9 Lpf Urinal - 12 per package
