R-1003-A Regal Master Rebuild Kit 3.5 gpf 13.2 Lpf Clo

Sloan

3317003
  • Part Number: 3317003
  • Weight: 0.4 lbs.
  • R-1003-A Model
  • 3.5 gallons or 13.2 liters per flush
  • Dimensions: 3.6 x 3 x 3.6 inches
  • Includes the following:
    • Diaphragm Assembly
      (includes relief valve, molded disc, guide assembly and diaphragm)
    • Handle repair kit with triple seal packing
    • High back pressure vacuum breaker repair kit
    • Tailpiece O-ring
$ 26.49
R1003A-3317003

Secure transaction
R1003A-3317003

R-1003-A Regal Master Rebuild Kit 3.5 gpf 13.2 Lpf Clo

$ 26.49 / each
Item Added to Cart
SKU
Description
Quantity
Show Cart

More Info

Sloan Valve Regal Flushometers

Regal Flushometer

Regal Flushometers provide water savings while maintaining performance advantages. Features such as an accurate flush delivery system, quiet performance and durable components add to the economics of the Regal Flushometer.

Master Rebuilding Kits

Code No. Part No. Description
3317001 R-1001-A Rebuild Kit (4.5 gpf/17.0 Lpf) Closet / Service Sink
3317002 R-1002-A Rebuild Kit (1.5 gpf/5.7 Lpf) Urinal
3317003 R-1003-A Rebuild Kit (3.5 gpf/13.2 Lpf) Closet
3317004 R-1004-A Rebuild Kit (1.6 gpf/6.0 Lpf) Closet
3317005 R-1005-A Rebuild Kit (1.0 gpf/3.8 Lpf) LC Urinal
3317011 R-1011-A Rebuild Kit (0.5 gpf/1.9 Lpf) Urinal
3317012 R-1012-A Rebuild Kit (2.4 gpf/9.0 Lpf) Closet

Inside Parts Kits (see chart below)

Code No. Part No. Application
A. 3301036 A-36-A 4.5 gpf/17.0 Lpf - Closet
B. 3301037 A-37-A 1.5 gpf/5.7 Lpf - Urinal
C. 3301038 A-38-A 3.5 gpf/13.2 Lpf - Closet
D. 3301041 A-41-A 1.6 gpf/6.0 Lpf - Closet
E. 3301044 A-42-A 1.0 gpf/3.8 Lpf - Urinal
F. 3301081 A-43-A 0.5 gpf/1.9 Lpf - Urinal
G. 3301024 A-44-A 2.4 gpf/9.0 Lpf - Closet
A
4.5gpf/17.0 Lpf
B
1.5gpf/5.7 Lpf
C
3.5gpf/13.2 Lpf
D
1.6gpf/6.0 Lpf
E
1.0gpf/3.8 Lpf
F
0.5gpf/1.9 Lpf
G
2.4gpf/9.0 Lpf

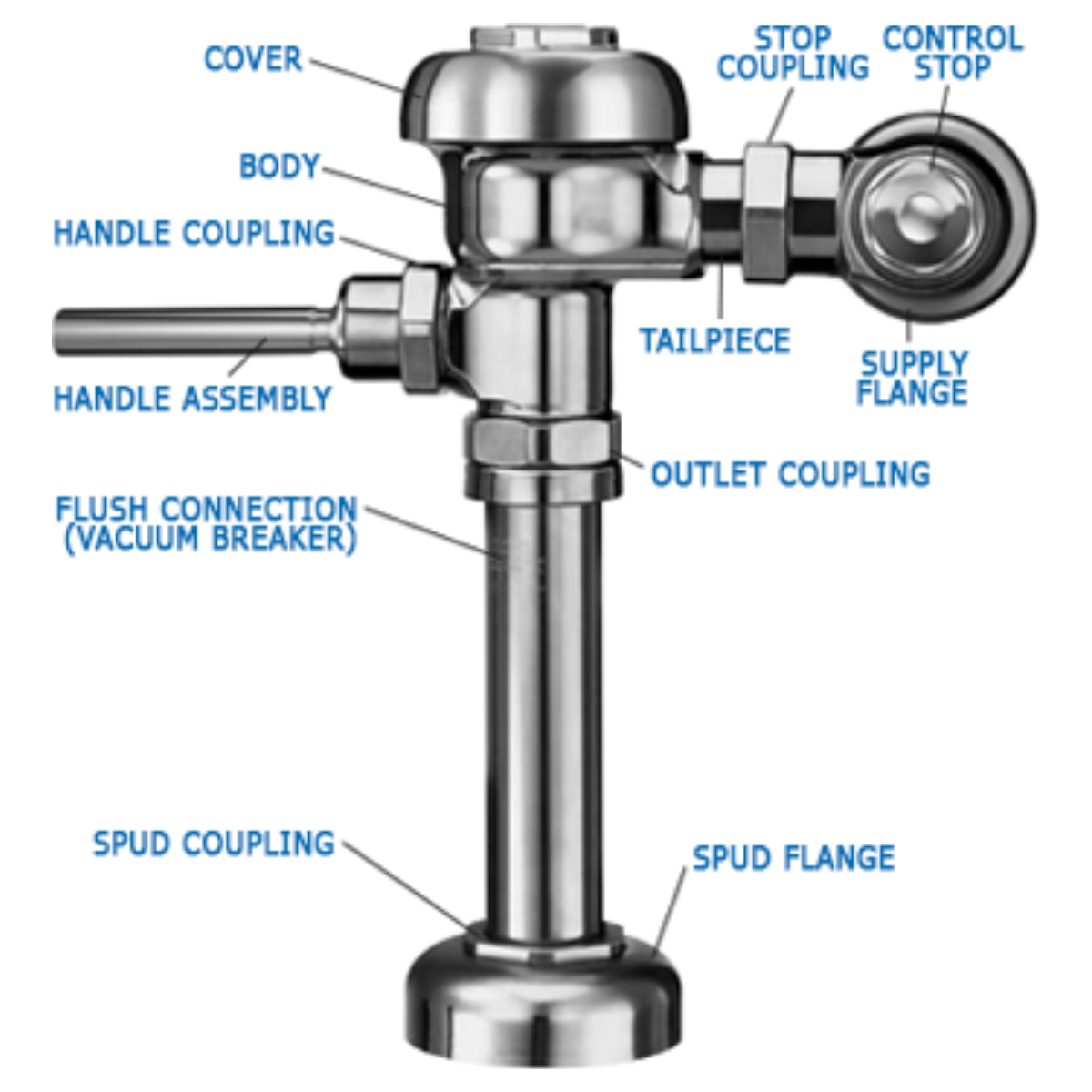

Regal Flushometer Specs & Guide

Inside Parts Componenets (see chart above)

Item No. Code No. Part No. Description
3A. 5301058 A-19-AC Relief Valve, White (Closet) - 12 per pkg.
3B. 5301059 A-19-AU Relief Valve, Black (Urinal) - 12 per pkg.
3C. 5301211 A-19-ALC Relief Valve, Green (Closet/Urinal-LC) - 12 per pkg.
3D. 0301143 A-19-AL Relief Valve, Blue (9 Liter Closet) - 12 per pkg.
4. 5301111 A-15-A Disc - for all Inside Parts Kits - 12 per pkg.
5. 5301188 A-156-A Diaphragm - for all Inside Parts Kits - 12 per pkg.
6A. 5301236 A-163-A Guide Assembly 4.5 gpf/17.0 Lpf Closet & 1.5 gpf/5.7 Lpf Urinal - 12 per package
6B. 5301032 A-152-A Guide Assembly 3.5 gpf/13.2 Lpf Closet - 12 per package
6C. 5301031 A-151-A Guide Assembly 1.6 gpf/6.0 Lpf LC Closet - 12 per package
6D. 5301155 A-155-A Guide Assembly 1.0 gpf/3.8 Lpf LC Urinal - 12 per package
6E. 5301157 A-157-A Guide Assembly 0.5 gpf/1.9 Lpf Urinal - 12 per package
